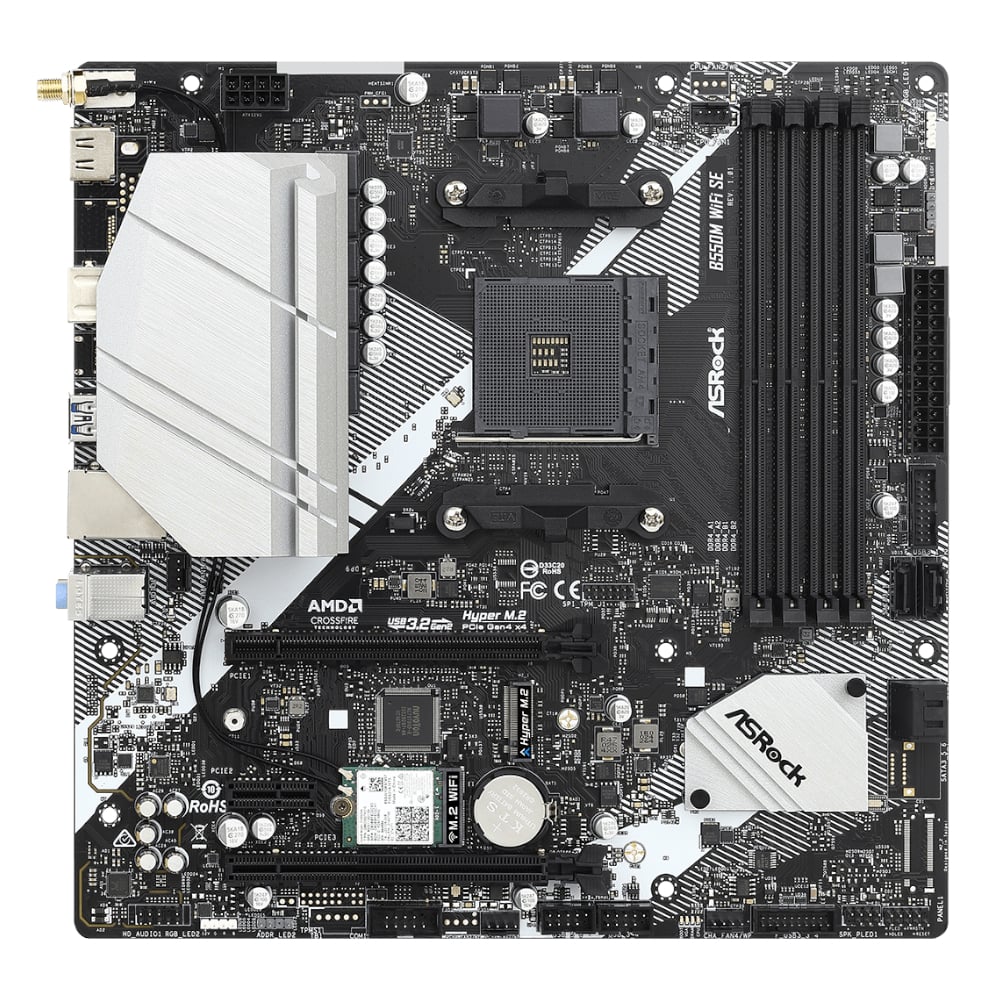

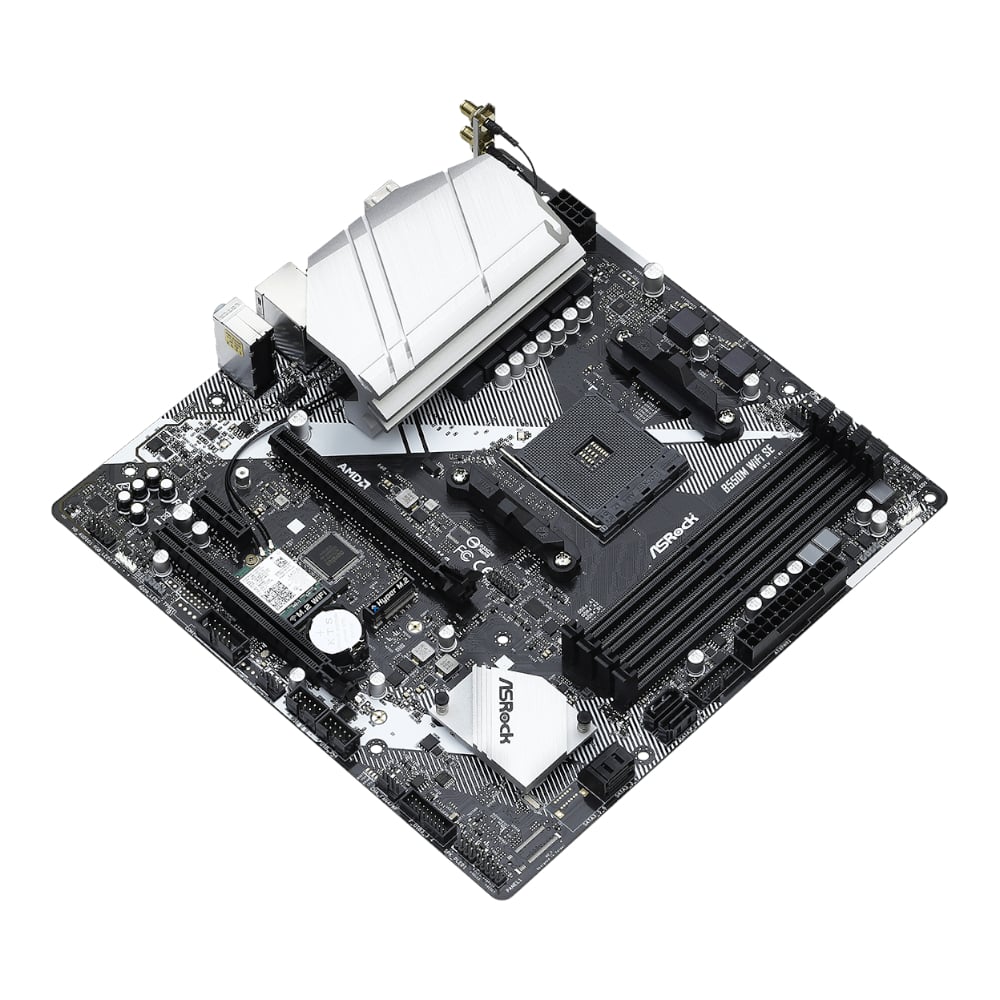

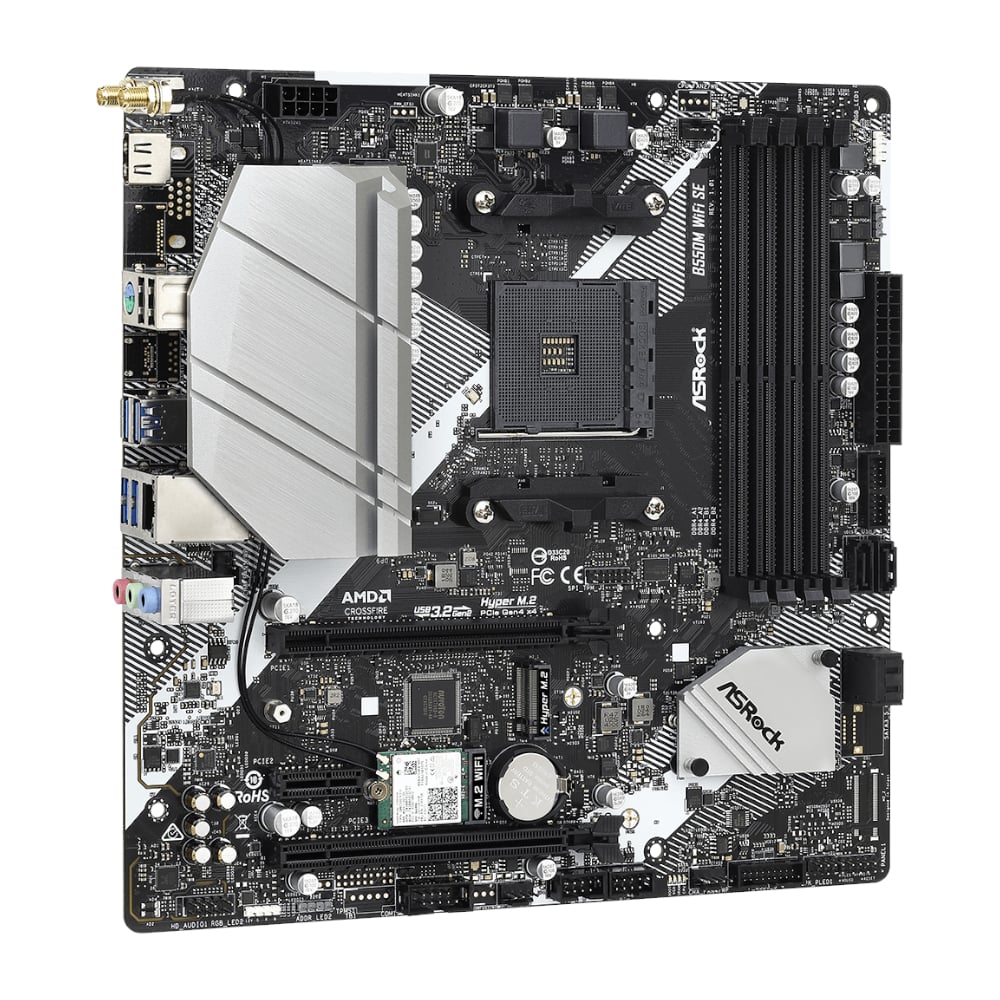

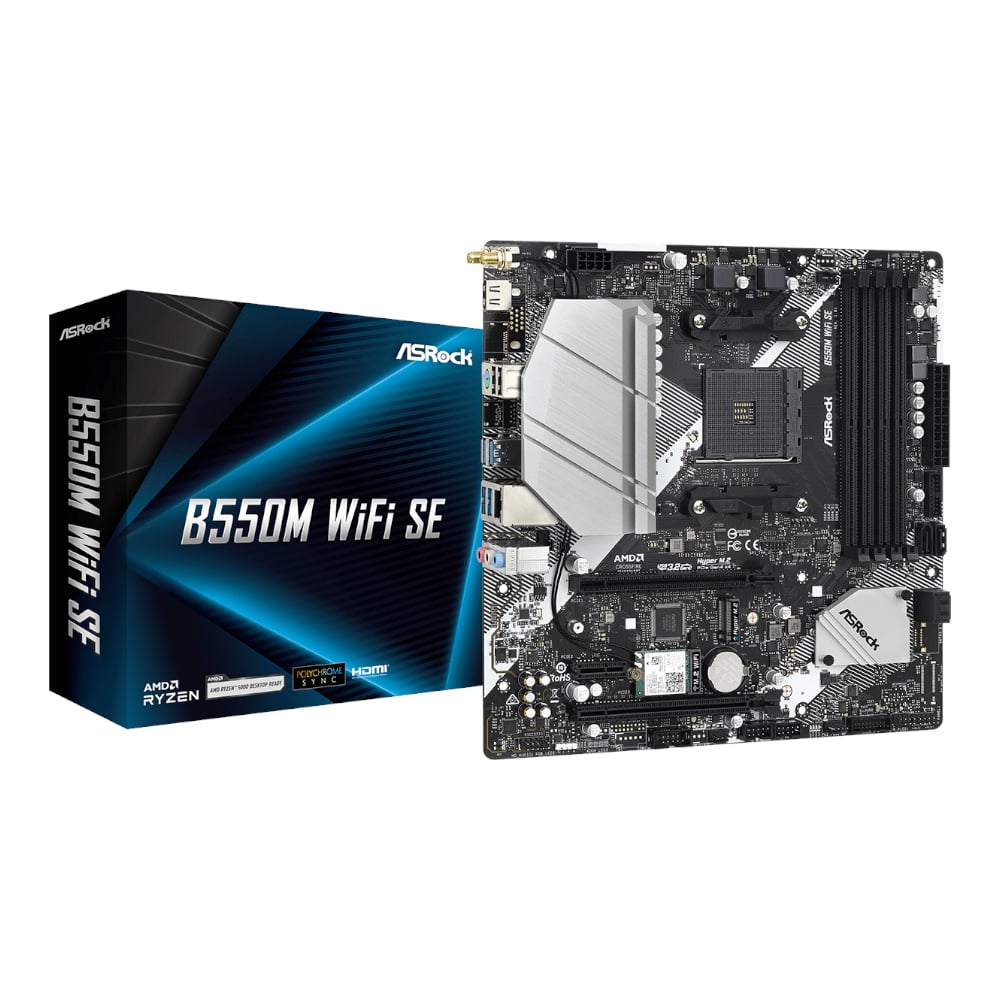

ASRock B550M Wi-Fi SE AMD AM4 m-ATX Motherboard

The ASRock B550M Wi-Fi SE AMD AM4 m-ATX Motherboard is a high-performance solution tailored for AMD enthusiasts and gamers. Built for AMD Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors, it delivers exceptional performance and flexibility for a wide range of applications.

This motherboard supports DDR4 memory up to 4733+ MHz (OC) with a maximum capacity of 128GB across four DIMM slots, ensuring smooth multitasking and future scalability. The 8 Power Phase Design provides reliable power delivery, ideal for stable operation and overclocking. For graphics and expansion, the board features 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, and 1 PCIe 3.0 x1 slot, offering versatility for GPUs and other add-ons.

Storage options include 4 SATA3 ports and 1 Hyper M.2 slot (PCIe Gen4 x4) for ultra-fast NVMe SSDs, providing ample room for high-speed storage. Onboard connectivity includes 8 USB 3.2 Gen1 ports (4 rear, support for 4 in front) and 6 USB 2.0 ports (2 rear, support for 4 in front) for external devices. With Realtek Gigabit LAN, Intel® 802.11ac Wi-Fi, and Bluetooth 4.2, it ensures seamless network connectivity for gaming, streaming, and productivity.

The Realtek ALC1220 7.1 CH HD Audio Codec delivers an immersive audio experience with content protection, perfect for gaming or media consumption. The HDMI output supports high-resolution displays, providing clear and vibrant visuals. Compact in its m-ATX form factor, the ASRock B550M Wi-Fi SE combines robust performance, advanced connectivity, and excellent audio into a versatile motherboard suitable for a variety of builds.

FEATURES:

• Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
• Supports DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options_ HDMI
• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
• 8 USB 3.2 Gen1 (4 Rear, 4 Front)
• 6 USB 2.0 (2 Rear, 4 Front)
• Realtek Gigabit LAN
• Intel^® 802.11ac Wi-Fi Module + Bluetooth 4.2

SPECIFICATIONS:

• Socket: AMD Socket AM4
• CPU (Max Support): Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors | 8 Power Phase design
• Chipset: AMD PRO565
• DDR4 Memory_ DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
• Memory Channel_ Dual
• DIMM Slots_ 4
• Max Memory (GB): 128
• PCI-E x16_ 1
• PCI-E GEN_ Gen4
• PCI-E x3_ 1
• SATAIII: 4
• M.2 Slot_ 1
• TPM (Header): 1
• RAID: 0/1/10
• LAN: Realtek RTL8111H Gigabit LAN
• Wi-Fi: Intel® 802.11ac Wi-Fi Module | Supports Bluetooth 4.2+ High speed class II
• USB 3.2 ports (Front): 4(Gen 1, Type A)
• USB 3.2 ports (Rear): 4(Gen 1, Type A)
• USB 2.0 ports (Front): 4(Type A)
• USB 2.0 ports (Rear): 2(Type A)
• Serial Ports(Front): 1
• Audio ports (Rear): Realtek ALC1220 Audio Codec
• HDMI: 1
• Form Factor_ M-ATX
• Operating System_ Support for Windows® 10 64-bit / 11 64-bit

WHAT’S IN THE BOX_

• ASRock B550M Wi-Fi SE AMD AM4 m-ATX Motherboard – Black x1

Please note_ This motherboard is not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G CPUs.
