Quick Specs
- Supports AMD Ryzen™ 9000, 8000, & 7000 Series Desktop Processors for peak performance.
- Features PCIe 5.0 slot for the latest graphics cards, ensuring future-proof gaming.
- Equipped with Lightning Gen 5 x2 M.2 slots for ultra-fast NVMe SSD storage.
- Incorporates EZ PC DIY features for easy building and upgrading.
- Delivers immersive audio with ROG SupremeFX 7.1 Surround Sound.

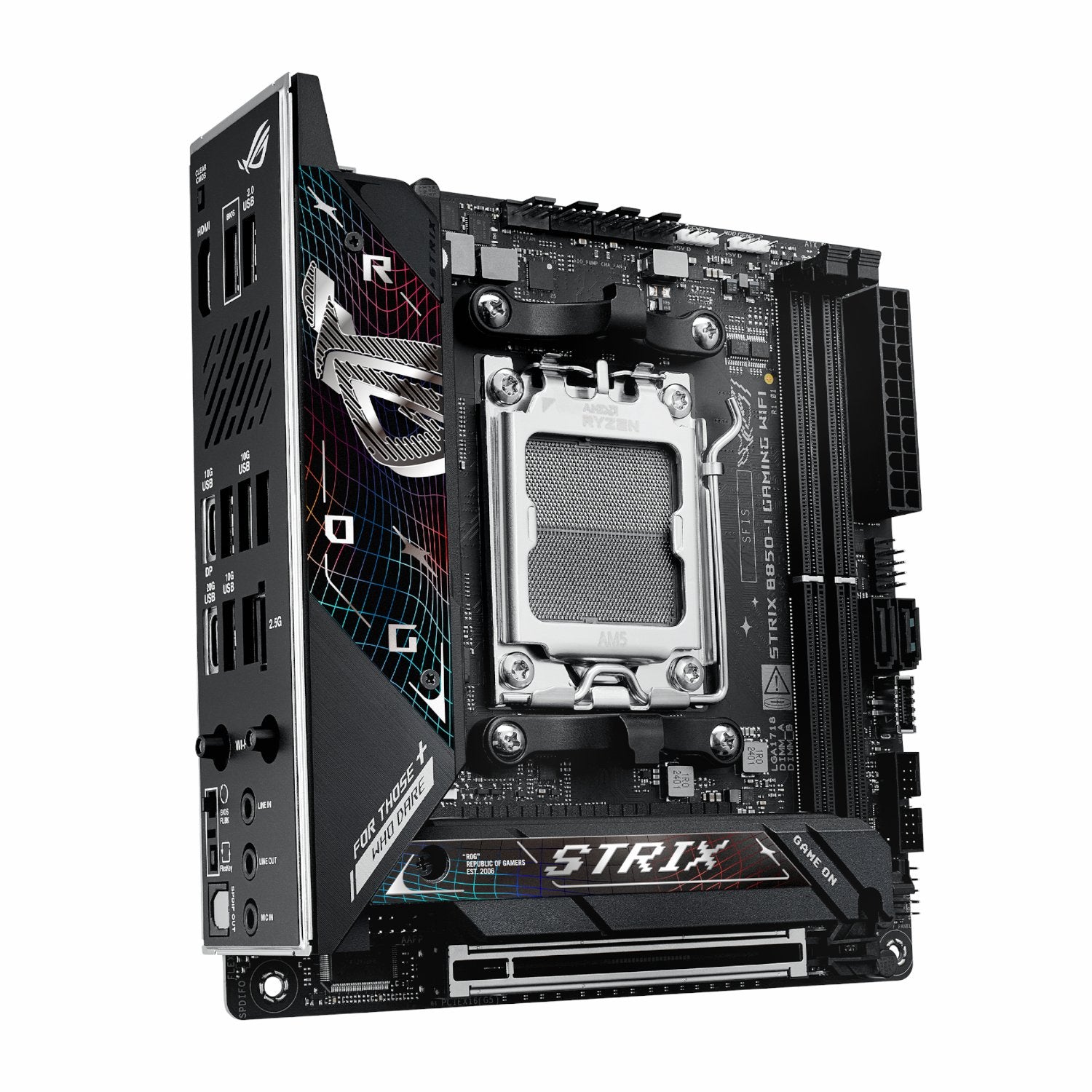

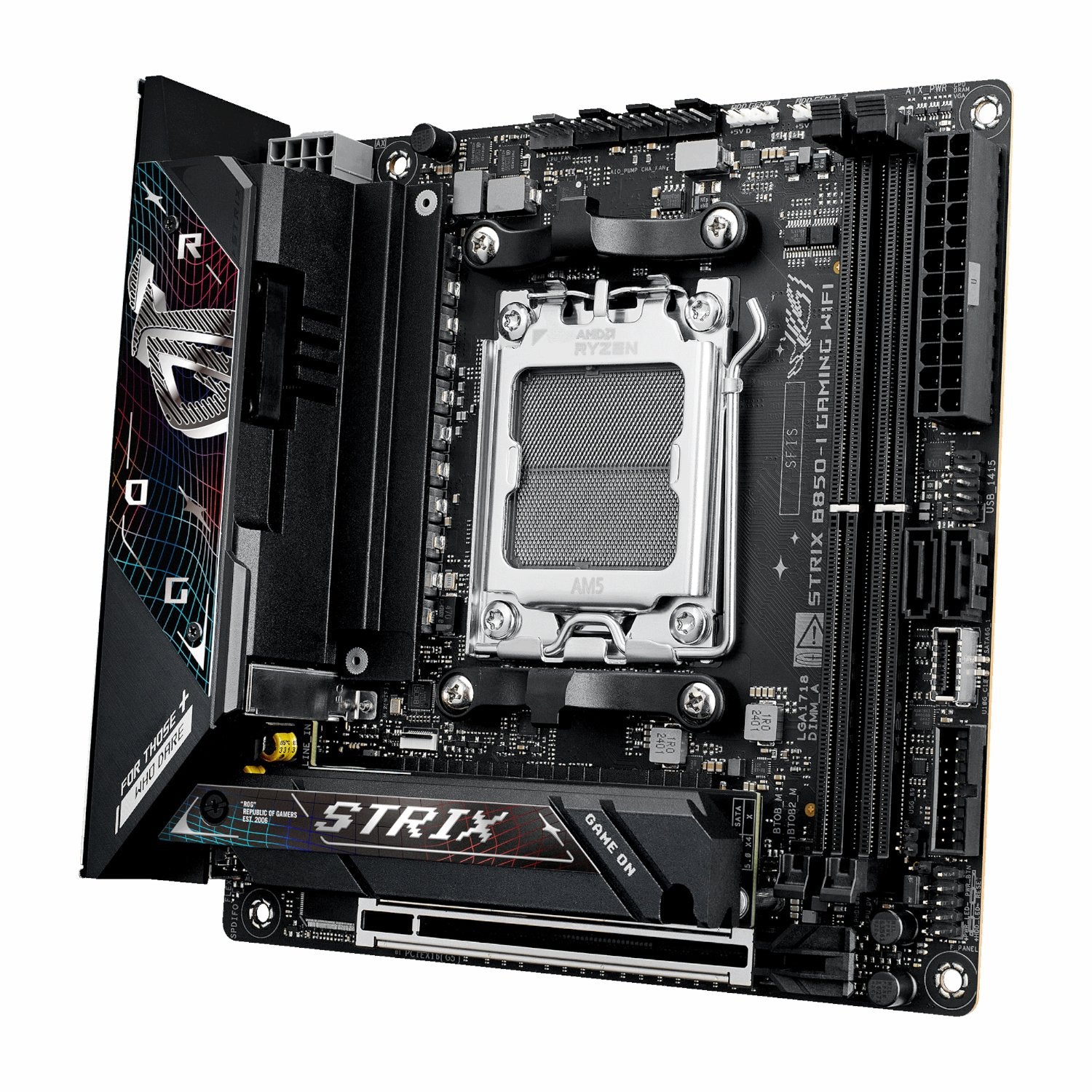

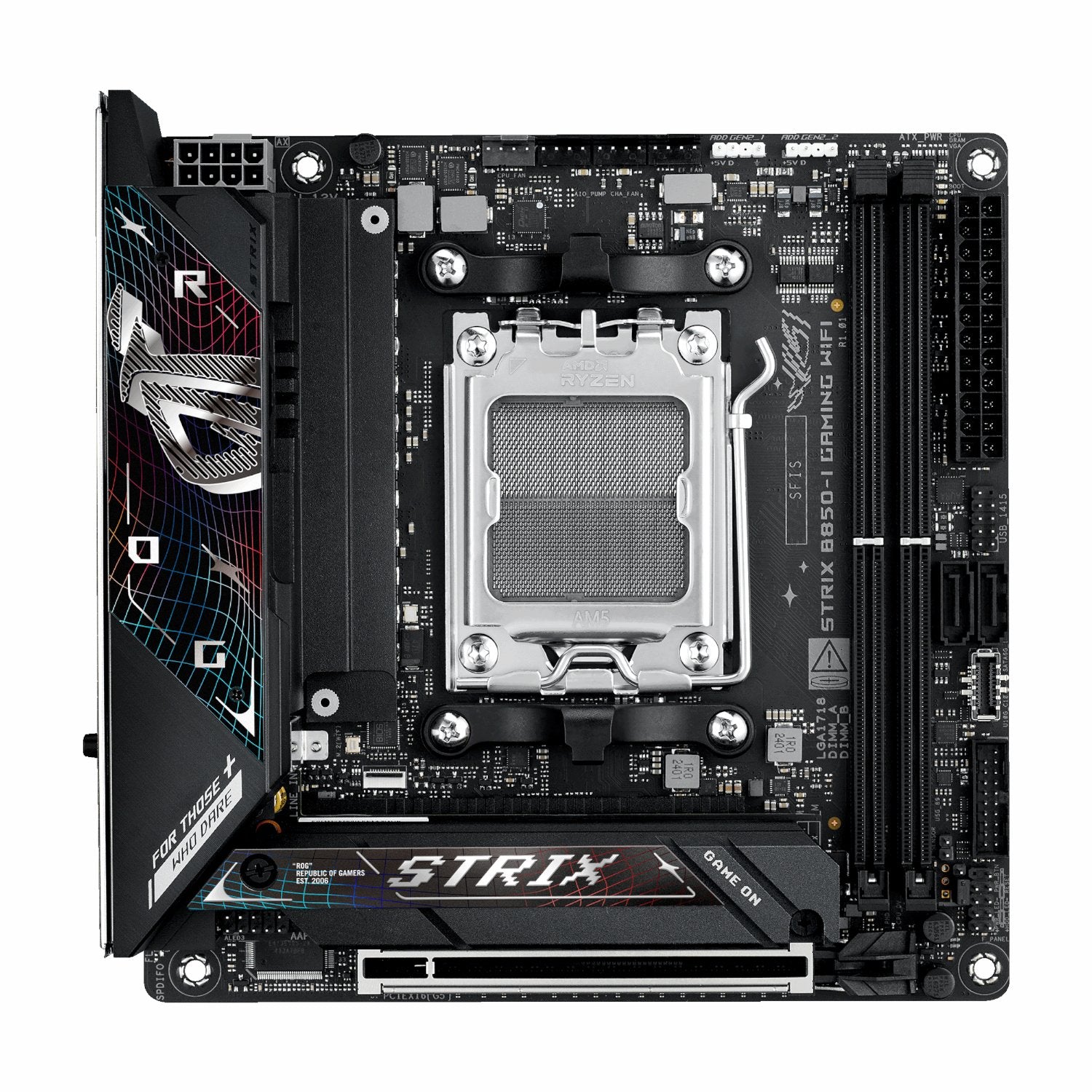

The Asus ROG Strix B850-I Gaming WiFi AM5 Mini-ITX Gaming Motherboard delivers exceptional features in a compact size. This mini ITX gaming motherboard is perfect for gamers and PC enthusiasts. If you're looking to build a high-performance, space-saving system, this mini ITX gaming motherboard is the perfect solution.
This PCIe 5.0 motherboard ensures blazing-fast data transfer speeds. The mini ITX gaming motherboard includes a PCIe 5.0 slot and Lightning Gen 5 x2 M.2 slots for the latest graphics cards and NVMe SSDs. Enjoy seamless gameplay with this PCIe 5.0 motherboard, reducing loading times. The Asus AM5 motherboard provides an overall smoother computing experience.
The ROG Strix B850-I Gaming WiFi incorporates user-friendly design elements to streamline PC building. Features like the PCIe Slot Q-Release Slim, M.2 Q-Slide, and M.2 Q-Latch connectors make installation and upgrades a breeze. Even novice builders can enjoy easy upgrades using this Asus AM5 motherboard.
Integrated with the ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, this Asus AM5 motherboard provides exceptional audio quality. The audio from this mini itx gaming motherboard creates a truly immersive gaming and entertainment experience. Enjoy crystal-clear sound and enhanced bass.
The Asus ROG Strix B850-I Gaming WiFi AM5 Mini ITX Gaming Motherboard supports the latest AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors. This ensures you have the power and performance you need for demanding games and applications. Combined with DDR5 support, this Asus AM5 motherboard allows you to create a cutting-edge gaming rig that can handle anything. This PCIe 5.0 motherboard is ready for the latest components.
FEATURES:
- AMD B850 Chipset
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC) 128GB max capacity
- Ultra-fast Wi-Fi 7 connectivity with Intel 2.5G Ethernet LAN
- Lightning Fast Game experience_ PCIe 5.0 slot, Lightning Gen 5 x2 M.2 slots
- AI Overclocking with AI Cache Boost
- Robust power solution
- EZ PC DIY_ PCIe slot Q-Release Slim, M.2 Q-Slide, and M.2 Q-Latch connectors for easy usage
- Gaming Audio with Dolby Atmos and ROG SupremeFX
SPECIFICATIONS:
- CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Chipset: AMD B850 Chipset
- Memory:
- 2 x DIMM slots, max. 128GB, DDR5
- Supports up to 8400+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- Graphics:
- 1 x HDMI™ port
- 1 x USB 10Gbps ports support USB Type-C® display outputs
- Expansion Slots_
- 1 x PCIe 5.0 x16 slot with Q-Release Slim (AMD Ryzen™ 9000 & 7000 Series Desktop Processors)
- 1 x PCIe 4.0 x16 slot with Q-Rlease Slim (AMD Ryzen™ 8000 Series Desktop Processors)
- Storage:
- AMD Ryzen™ 7000 & 9000 Series Desktop Processors
- M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
- M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
- M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Ethernet:
- 1 x Intel® 2.5Gb Ethernet
- ASUS LANGuard
- Wireless & Bluetooth_
- Wi-Fi 7
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth® v5.4
- Rear USB (Total 8 ports):
- 1 x USB 20Gbps port(s) (1 x USB Type-C®)
- 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
- 2 x USB 2.0 port(s) (2 x Type-A)
- Front USB (Total 5 ports):
- 1 x USB 10Gbps
- 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
- 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports
- USB Type-C® power delivery output_ max. 5V/3A
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080_
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
- Audio Features_
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

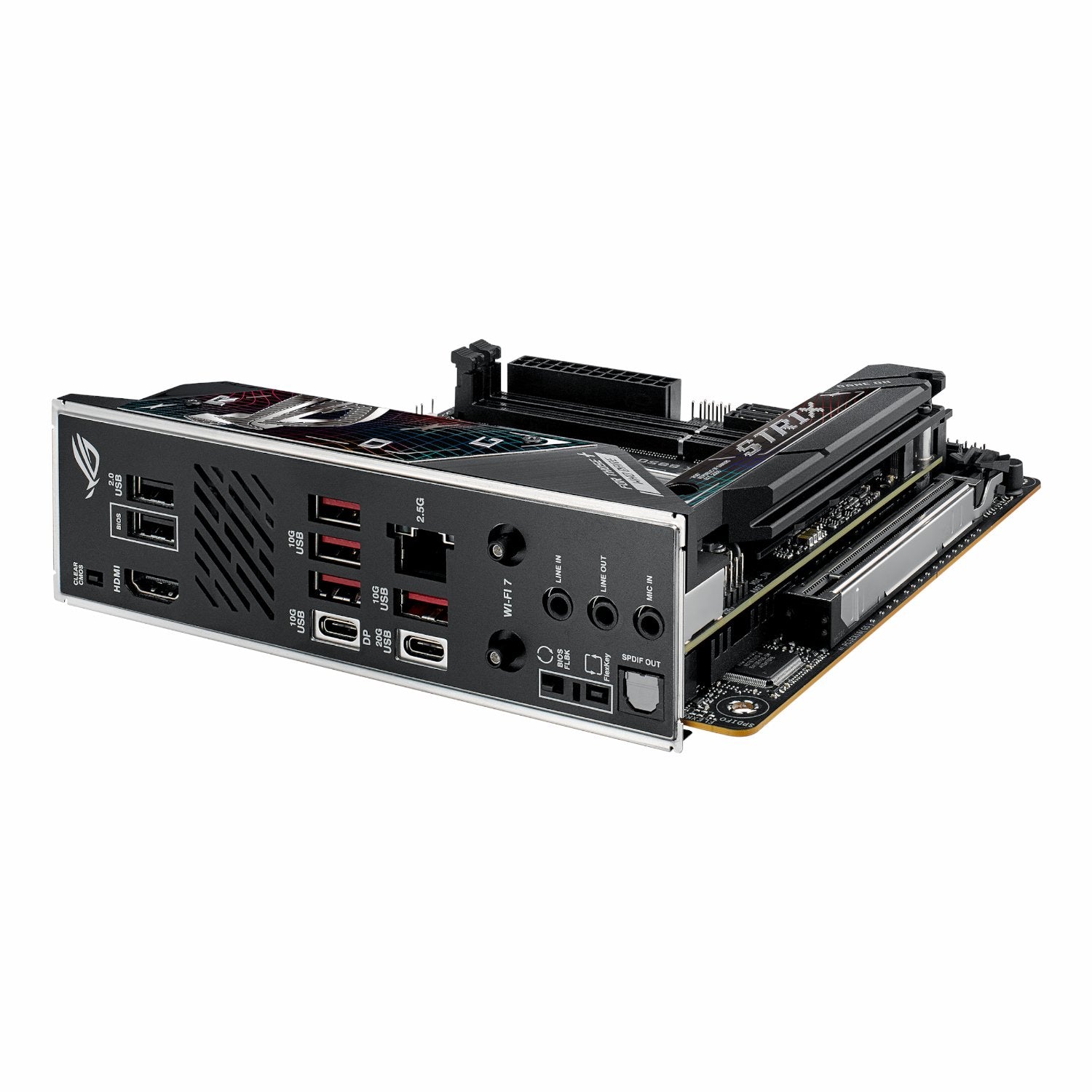

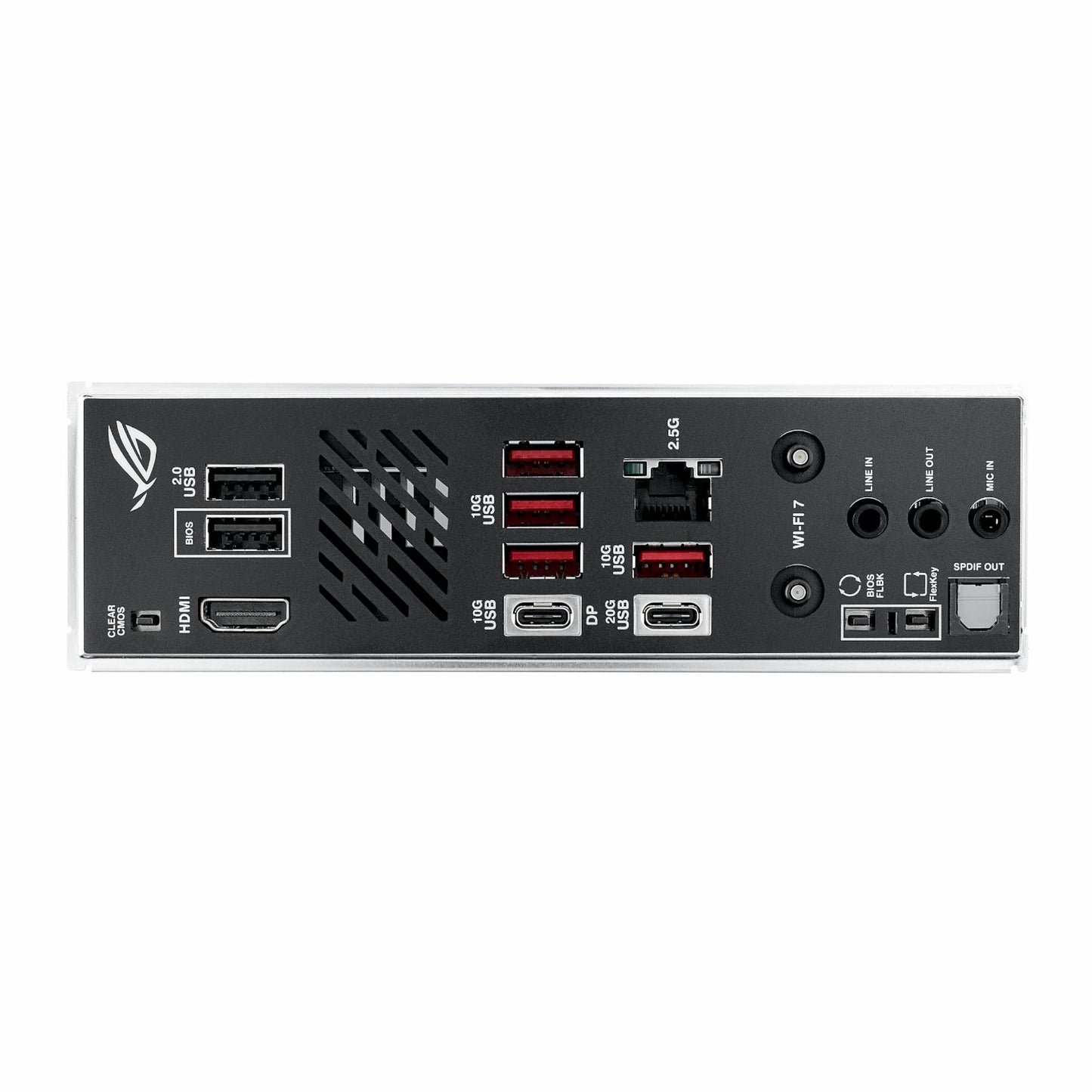

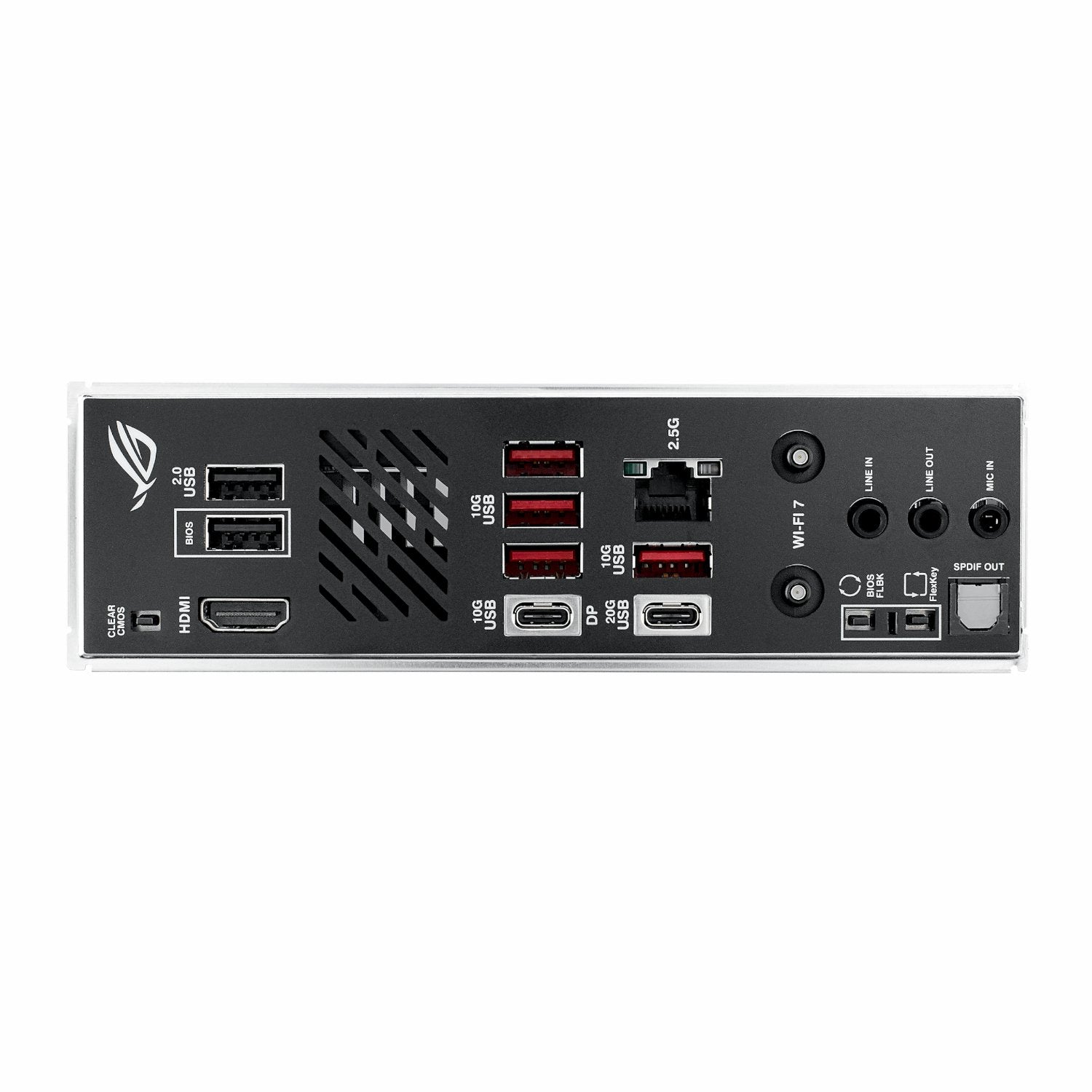

- Back Panel I/O Ports_
- 1 x USB 20Gbps port(s)
- 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
- 2 x USB 2.0 port(s) (2 x Type-A)
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Intel® 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
- 1 x FlexKey button
- Operating System_ Windows 11
- Form Factor_ Mini-ITX

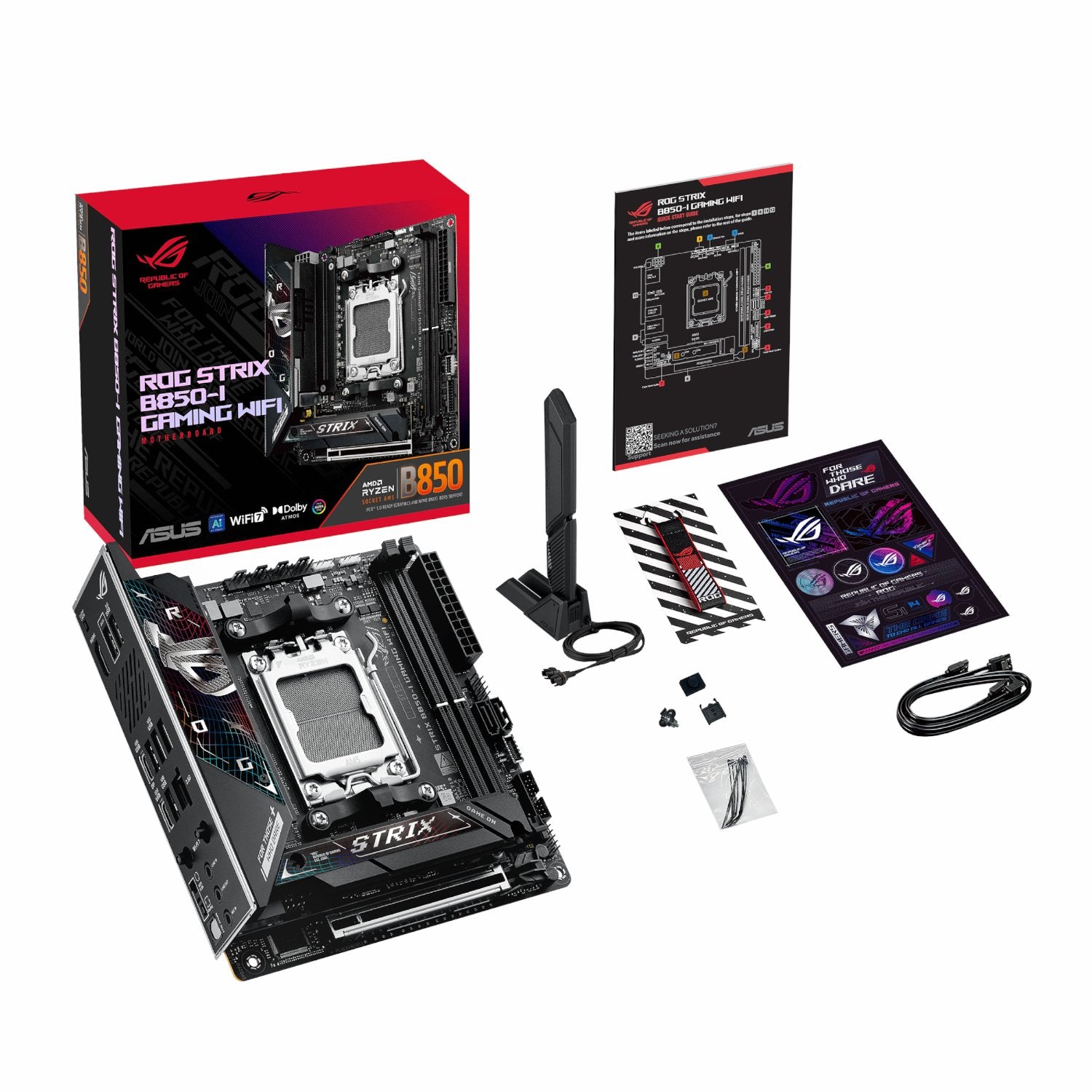

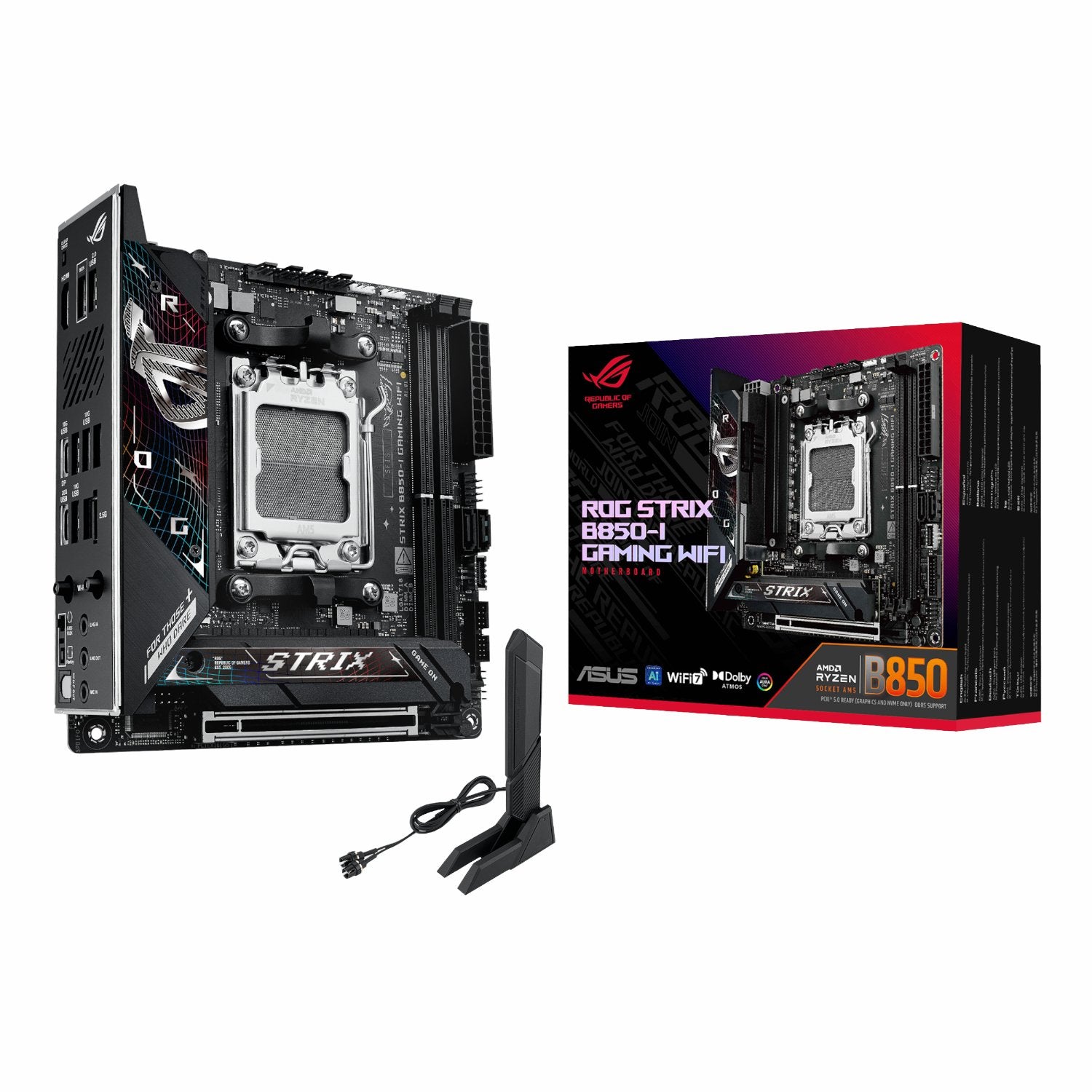

WHAT'S IN THE BOX_
- Asus ROG Strix B850-I Gaming WiFi AM5 Mini-ITX Gaming Motherboard x1
- SATA 6Gb/s cables x2
- Asus WiFi W-Antenna x1
- Cable Ties Package x1
- M.2 backplate Q-Latch package x1
- N.2 Q-Slide package x1
- ROG Key Chain x1
- ROG Strix Stickers x1
- M.2 backplate rubber package x1
- Quick Start Guide x1
Why Asus_
Asus ROG Strix motherboards are renowned for their exceptional quality, performance, and innovative features. Designed for gamers and PC enthusiasts, ROG Strix motherboards deliver cutting-edge technology, reliable performance, and stunning aesthetics. With a strong commitment to customer satisfaction and continuous innovation, Asus ROG Strix is the premier choice for building a high-performance gaming rig that exceeds expectations, especially here in South Africa where quality and reliability are paramount.
