Unleash peak performance for your gaming rig with robust power delivery and next-gen connectivity.
Quick Specs
- Experience unparalleled stability and overclocking potential with a sophisticated power delivery system.
- Seamlessly connect high-speed peripherals and storage with integrated PCIe 5.0 and multiple M.2 slots.
- Achieve lightning-fast network speeds for competitive gaming and streaming with built-in Wi-Fi 6E and 2.5Gb Ethernet.
- Benefit from intelligent cooling solutions designed to maintain optimal temperatures under intense loads.
- Enjoy a superior audio experience with high-fidelity, AI-noise-cancelling microphone input for clear team communication.

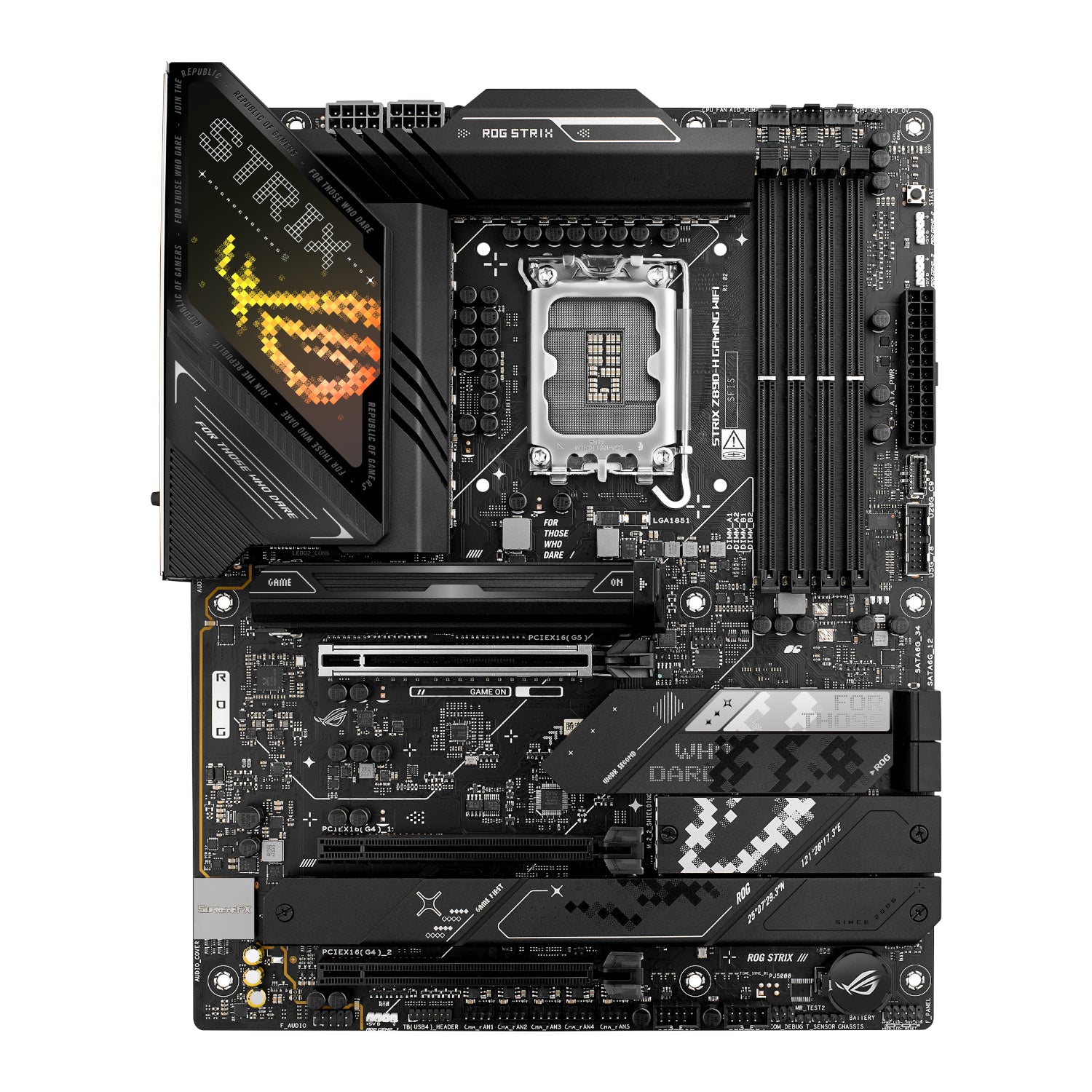

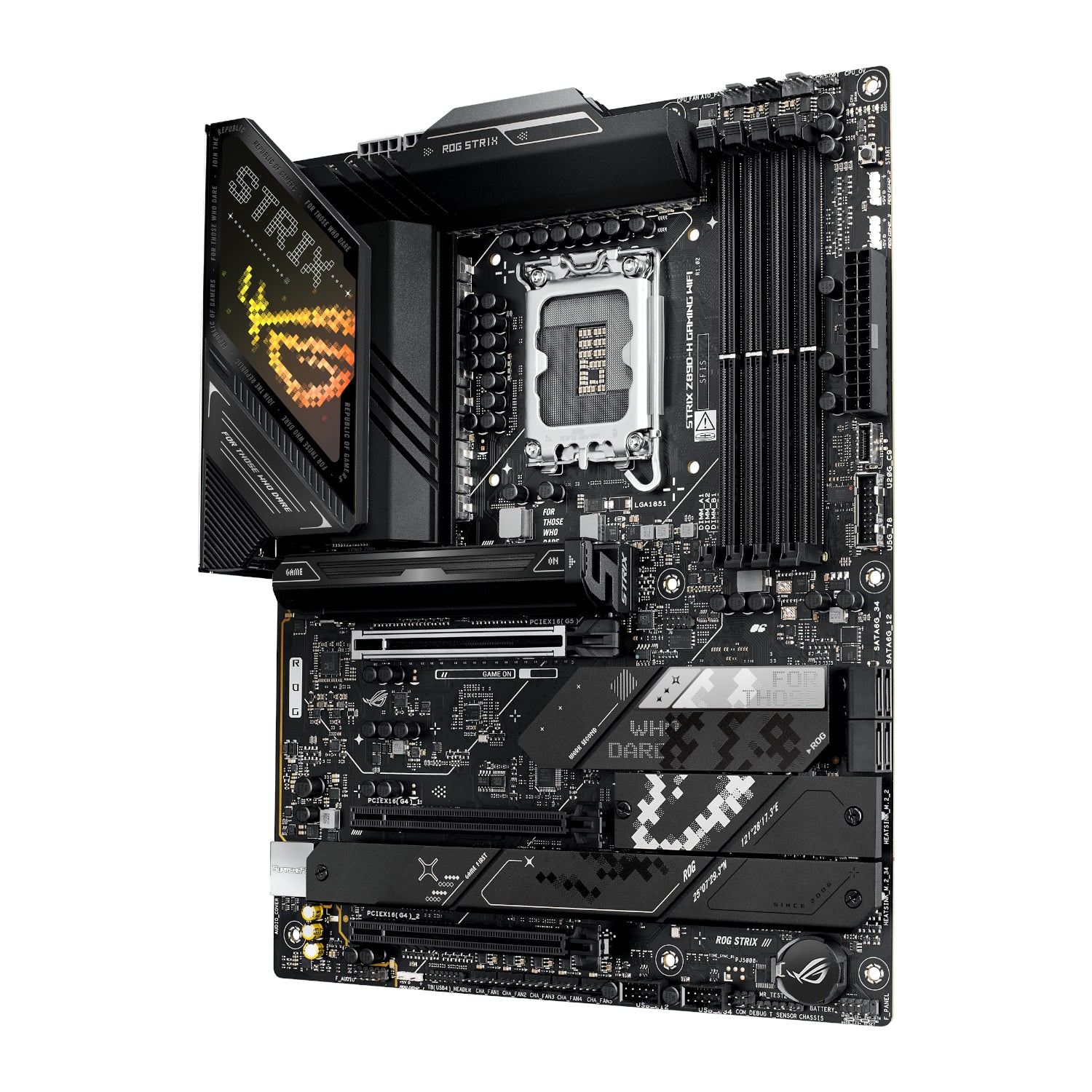

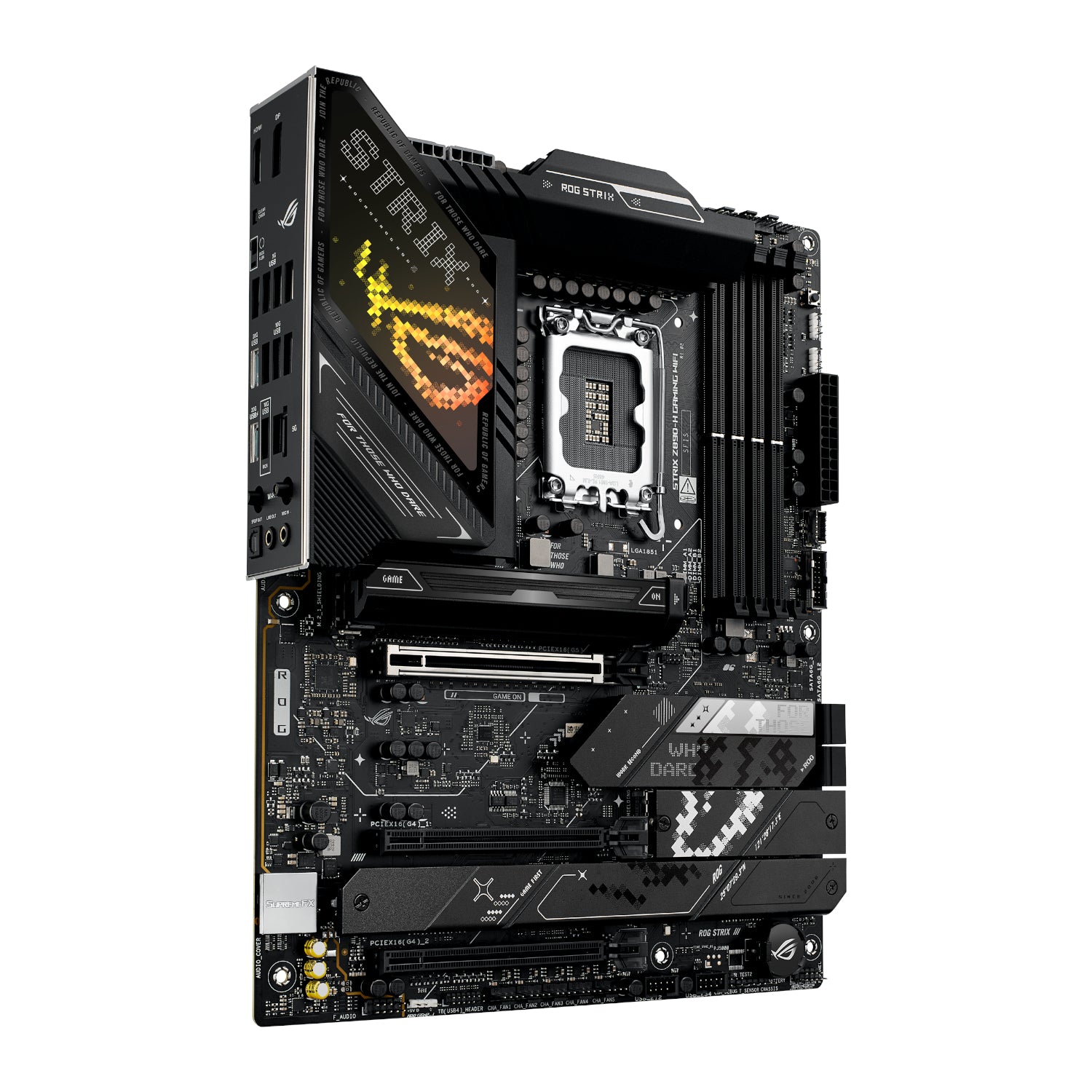

Dominate the digital battlefield with the Asus ROG Strix Z890-H GAMING WIFI motherboard
Engineered for the serious South African gamer, this ATX gaming motherboard is the cornerstone of a high-performance PC build. It is designed to harness the full potential of Intel's latest processors, delivering uncompromising power, connectivity, and stability. This is not merely a component; it is the central nervous system of a gaming machine built for victory, ensuring that every command is executed with precision and every frame is rendered without compromise. For those who demand peak performance and reliability in their gaming pursuits, this Intel Z890 chipset motherboard stands as the ultimate foundation.
Unleash raw power and speed
At the heart of the ROG Strix Z890-H lies a formidable power delivery system, featuring robust VRMs and premium chokes, meticulously designed to provide stable power to even the most demanding Intel CPUs. This ensures consistent performance during intense gaming sessions and demanding overclocking scenarios. Coupled with an array of fast DDR5 memory support, this ATX gaming motherboard is built to unlock the full potential of your system’s processing power, offering a tangible advantage in load times and in-game responsiveness.
Connectivity built for the future of gaming
Prepare for the next generation of high-speed components. With PCIe 5.0 support, you can harness the full bandwidth of the latest graphics cards and ultra-fast NVMe SSDs, drastically reducing load times and enhancing overall system performance. Multiple M.2 slots provide ample expansion for storage, ensuring you have space for your extensive game library. Furthermore, integrated Wi-Fi 6E and a 2.5Gb Ethernet port offer blazing-fast, low-latency network connections, critical for competitive online gaming and seamless streaming.
Intelligent design for peak performance and longevity
Asus understands that sustained performance requires effective thermal management. The ROG Strix Z890-H features comprehensive cooling solutions, including robust heatsinks for the VRMs and chipset, along with multiple fan headers and AIO pump headers, all controllable via intuitive software. This ensures that your components remain cool and perform optimally, even under extreme loads, prolonging their lifespan and preventing performance throttling during critical moments. This thoughtful design caters to builders who value both power and durability.
Crystal-clear communication and immersive audio
Victory is often a team effort, and clear communication is paramount. This motherboard features AI-powered noise-cancelling microphone input, which intelligently filters out background noise, ensuring your voice is heard clearly by your teammates. The integrated high-fidelity audio solution delivers rich, immersive soundscapes, pulling you deeper into the game and providing a distinct auditory advantage.
Advanced Intel z890 chipset features
The Intel Z890 chipset is the brain of this operation, providing enhanced connectivity and support for the latest Intel processors. It enables features like PCIe 5.0, advanced memory overclocking, and superior power management, ensuring your system is ready for anything. This motherboard leverages the full capabilities of the Intel z890 chipset to deliver an unparalleled gaming experience.
FEATURES:
- Achieve superior overclocking and system stability with a robust digital power solution and premium components.
- Experience next-generation data transfer speeds for graphics cards and storage with integrated PCIe 5.0 and multiple M.2 slots.
- Enjoy lag-free online gaming and ultra-fast downloads with advanced Wi-Fi 6E and a high-speed 2.5Gb Ethernet port.
- Maintain optimal system temperatures during intensive tasks with comprehensive heatsinks and intelligent fan control.
- Ensure clear communication with teammates through AI-powered noise-cancelling microphone technology for pristine audio input.
- Immerse yourself in detailed soundscapes with high-fidelity onboard audio, enhancing your gaming and entertainment experience.
- Seamlessly manage and customise your system with the intuitive Armoury Crate software suite.
- Benefit from enhanced system protection and durability with features like robust I/O shielding and overvoltage protection.
SPECIFICATIONS:
- CPU
- Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to https_//www.asus.com/support/download-center/ for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset
- Memory
- 4 x DIMM slots, max. 256GB, DDR5
- Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
- Dual channel memory architecture
- Supports Intel® Extreme Memory Profile (XMP) memory module
- Supports DIMM Flex
- DIMM Fit
- ASUS Enhanced Memory Profile III (AEMP III)
- *Adjustments will be made based on the specifications of mass-produced memory products available on the market.
- Support list under the Support tab of product information site or visit https_//www.asus.com/support/download-center/.
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- Graphics
- 1 x DisplayPort**
- 1 x HDMI™ port***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- **** VGA resolution support depends on processors' or graphic cards' resolution.
- Expansion Slots
- Intel® Core™ Ultra Processors(Series 2)
- 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
- Intel® Z890 Chipset
- 2 x PCIe 4.0 x16 slots (supports x4 mode)
- To ensure compatibility of the device installed, please refer to https_//www.asus.com/support/download-center/ for the list of supported peripherals.
- Storage
- Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® Core™ Ultra Processors(Series 2)*
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- Intel® Z890 Chipset
- M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
- Ethernet
- 1 x Realtek 5G Ethernet
- ASUS LANGuard
- Wireless & Bluetooth
- Wi-Fi 7*
- 2x2 Wi-Fi 7 (802.11be)
- Supports 2.4/5/6GHz frequency band**
- Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
- Bluetooth® v5.4***
- *Wi-Fi features may vary depending on the operating system
- For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
- For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
- ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
- *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- Audio
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- - Impedance sense for front and rear headphone outputs
- - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- - Supports_ Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- - Supports up to 32-Bit/192 kHz playback*
- Audio Features
- - SupremeFX Shielding Technology
- - Savitech SV3H712 AMP
- - Gold-plated audio jacks
- - Rear optical S/PDIF out port
- - Premium audio capacitors
- - Audio cover

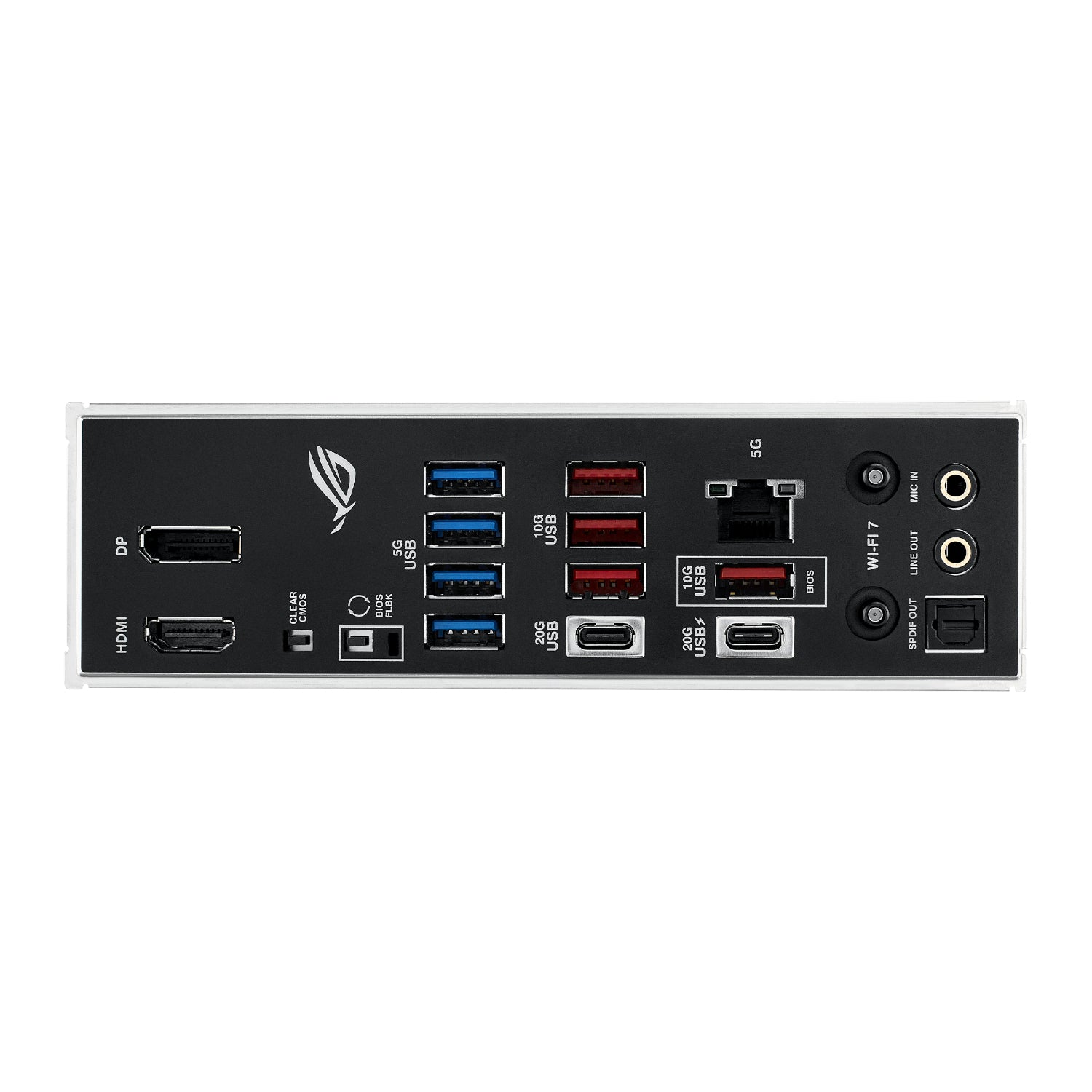

- Back Panel I/O Ports
- 2 x USB 20Gbps ports (1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge**)
- 4 x USB 10Gbps ports (4 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 5Gb Ethernet port
- 2 x Gold-plated audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
- Internal I/O Connectors
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 5 x 4-pin Chassis Fan header
- Power Related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connector
- Storage Related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 20Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header support 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Chassis Intrusion header
- 1 x CPU Over voltage jumper
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x Start button
- 1 x 10-1 pin Front System Panel header
- 1 x Thermal Sensor header
- 1 x Thunderbolt™ (USB4®) header
- Special Features
- Extreme Engine Digi+
- - 5K Black metallic capacitors
- ASUS Q-Design
- - M.2 Q-Latch
- - M.2 Q-Release
- - M.2 Q-Slide
- - PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- - Q-Antenna
- - Q-Dashboard
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink backplate
- - M.2 heatsink
- - VRM heatsink design
- ASUS EZ DIY
- - BIOS FlashBack™ button
- - BIOS FlashBack™ LED
- - Clear CMOS button
- - CPU Socket lever protector
- - ProCool II
- - Pre-mounted I/O shield
- - SafeSlot
- - SafeDIMM
- Aura Sync
- - Addressable Gen 2 headers
- Rear USB 20Gbps with PD Fast Charge Support
- - Support_ up to 30W fast charging and USB Wattage Watcher
- - Output_ 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- - Compatible with PD3.0
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Operating System
- Windows® 11 (22H2 & later)
- Form Factor
- ATX Form Factor
- 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

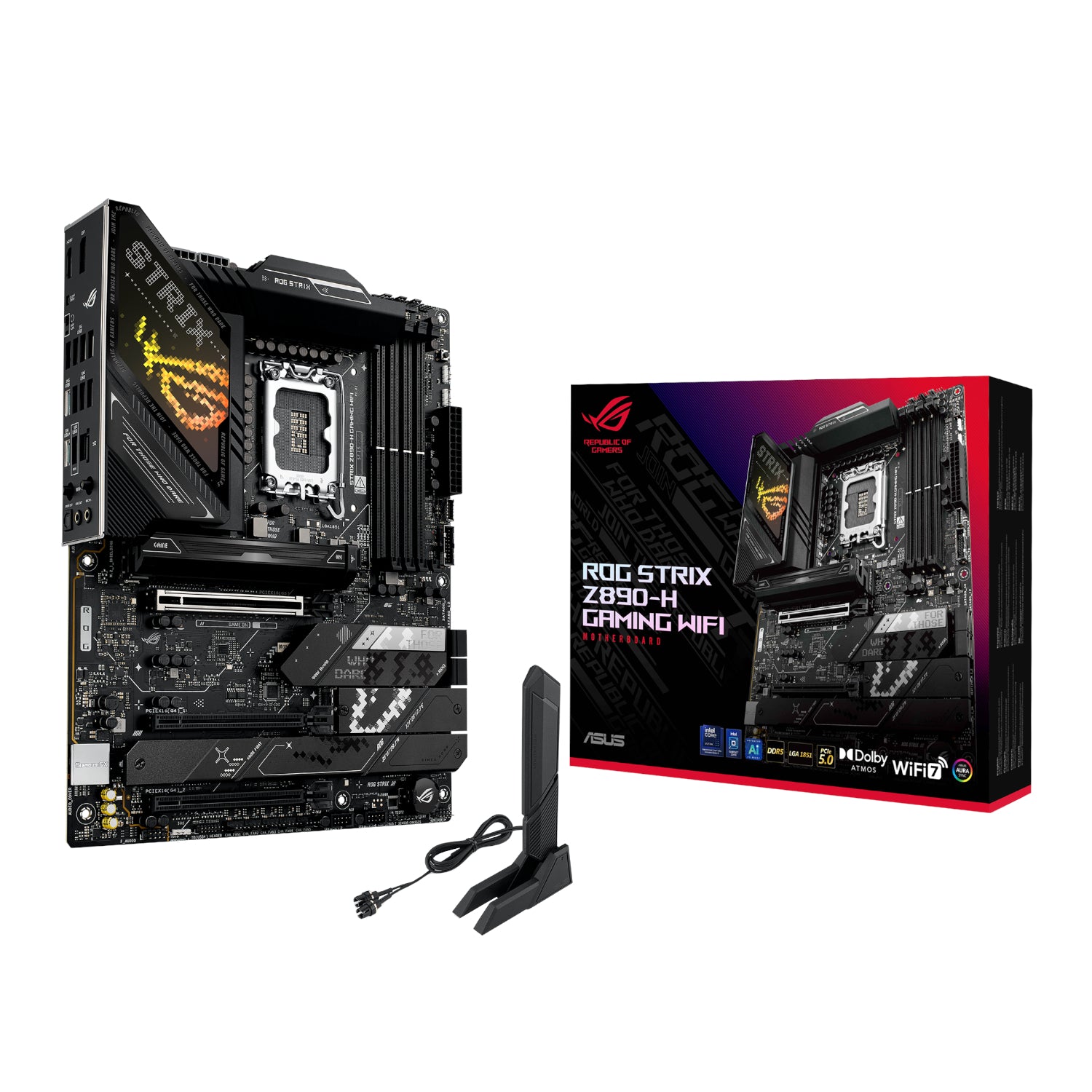

WHAT'S IN THE BOX_
- Asus ROG Strix Z890-H GAMING WIFI Intel LGA1851 ATX Motherboard - Black x1
- SATA 6Gb/s cables x2
- Thermal pad for M.2 22110 x1
- ASUS WiFi Q-Antenna x1
- Cable ties package x1
- M.2 Q-Latch package x1
- ROG key chain x1
- ROG Strix stickers x1
- M.2 rubbers x4
- Quick start guide x1
