The ASUS TUF Gaming A520M-PLUS WiFi AM4 M-ATX Gaming Motherboard combines rugged durability with powerful gaming features to deliver a solid foundation for your next build. Designed to support AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series Desktop Processors, this motherboard features the AMD A520 chipset and dual-channel DDR4 memory support for seamless performance. Its military-grade components ensure reliable power delivery, while the comprehensive cooling system, including large VRM and PCH heatsinks, keeps your system running efficiently during intense gaming sessions.
Engineered for gamers, the A520M-PLUS WiFi offers advanced connectivity and customisation. It includes 802.11ac Wi-Fi for ultrafast wireless speeds, Realtek 1Gb Ethernet with TUF LANGuard, and TurboLAN technology for low-latency online gameplay. The onboard M.2 slot supports PCIe 3.0 bandwidth for lightning-fast data transfer speeds, enabling quicker boot-ups and app load times. With support for up to 128GB of DDR4 memory, four DIMM slots, and a range of PCIe options, this motherboard is equipped to handle demanding multitasking and high-performance gaming setups.
Level up your custom PC build with the ASUS Prime LC 240 ARGB liquid CPU cooler – an all-in-one cooling solution engineered for performance, style, and ease of installation. Whether you’re building from scratch or upgrading your current setup, this cooler is designed to meet the demands of modern processors while enhancing your rig’s aesthetics.
The specially designed copper CPU contact plate provides a larger surface area for heat transfer, enabling faster and more efficient thermal dissipation. This ensures your CPU stays cool and stable under heavy workloads, reducing the risk of thermal throttling and maintaining peak performance.
FEATURES:
- AMD A520 Chipset motherboard and 240mm AIO CPU Liquid Cooler bundle
- Supports AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Supports DDR4 Memory, Dual Channel DDR4 4866 MT/s (OC) 128GB max capacity
- Realtek 1Gb Ethernet LAN with Asus TUF LANGuard
- M.2 slot with PCIe 3.0 support
- Customisable infinity mirror lenses for stunning ARGB lighting effects and futuristic build aesthetics
- Enlarged copper CPU contact plate enhances heat transfer for superior thermal performance
- Pre-installed 12 cm ARGB fans with a 600–2200 RPM range for powerful and efficient cooling
- Compatible with Intel® LGA 1851, 1700, 1200, 115X and AMD AM5, AM4 sockets
SPECIFICATIONS:

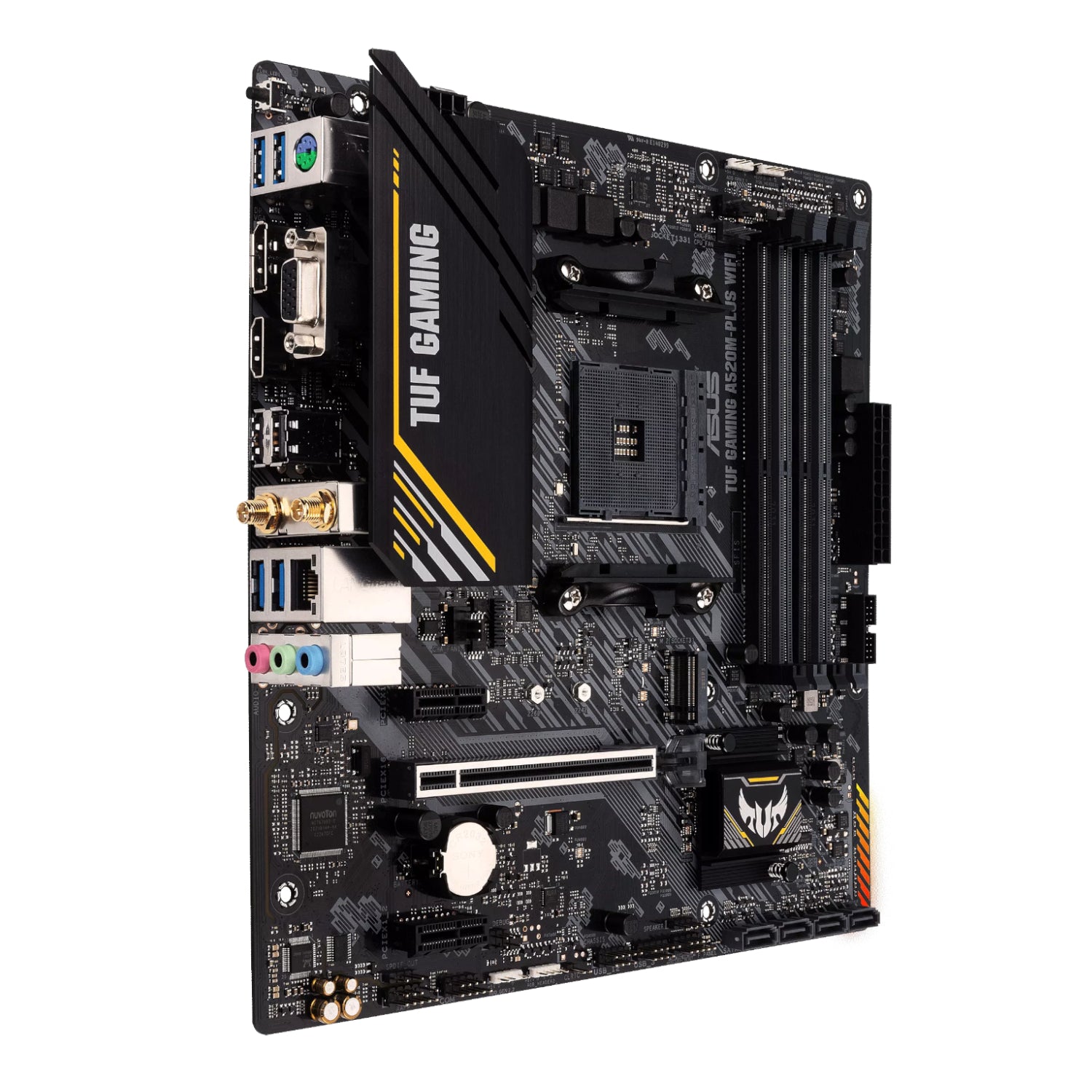

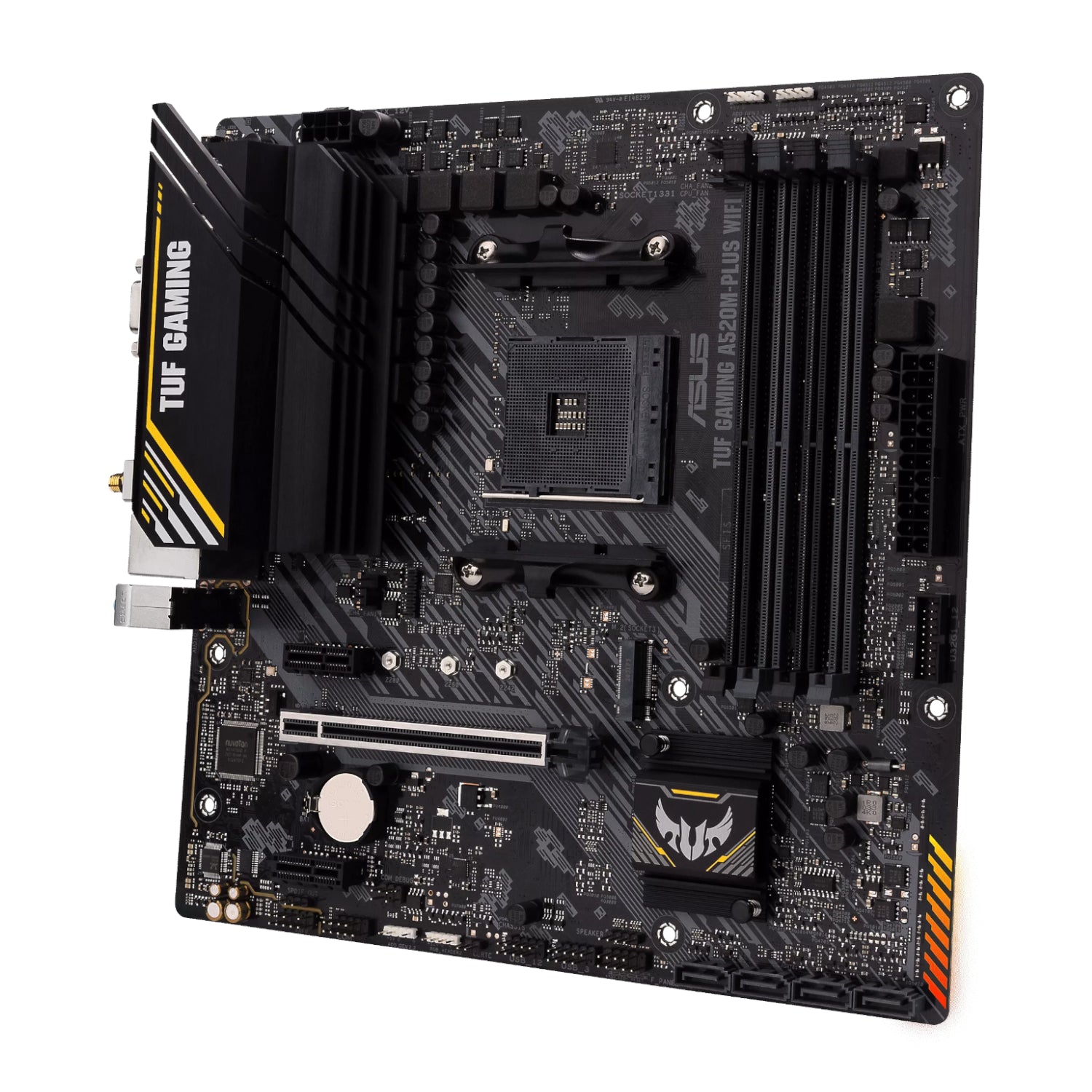

- Asus TUF Gaming A520M-PLUS WiFi AM4 M-ATX Gaming Motherboard
- CPU: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Chipset: AMD A520 Chipset
- Memory:
- 4 x DIMM, Max. 128GB, DDR4
- 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)
- 3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*
- Dual Channel Memory Architecture
- * ECC memory (ECC mode) support varies by CPU.
- Graphics:
- 1 x DisplayPort 1.2
- 1 x HDMITM 2.1(4K@60Hz)
- 1 x D-Sub
- * Graphics specifications may vary between CPU types.
- Expansion Slots_
- AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
- 1 x PCIe 3.0 x16 slot (supports x16 mode)
- AMD A520 Chipset
- 2 x PCIe 3.0 x1 slots
- Storage:
- AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- AMD A520 Chipset
- 4 x SATA 6Gb/s ports
- Support RAID 0, 1, 10
- Ethernet:
- 1 x Realtek 1Gb Ethernet
- TUF LANGuard
- Wireless & Bluetooth_
- Realtek Wi-Fi 5 8821CE
- 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
- Supports dual frequency band 2.4/5GHz
- Supports channel bandwidth_ HT20/HT40/HT80
- Bluetooth v5.0
- Rear USB (Total 6 ports):
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports):
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 3 USB 2.0 ports
- Audio:
- Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Audio Features_
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

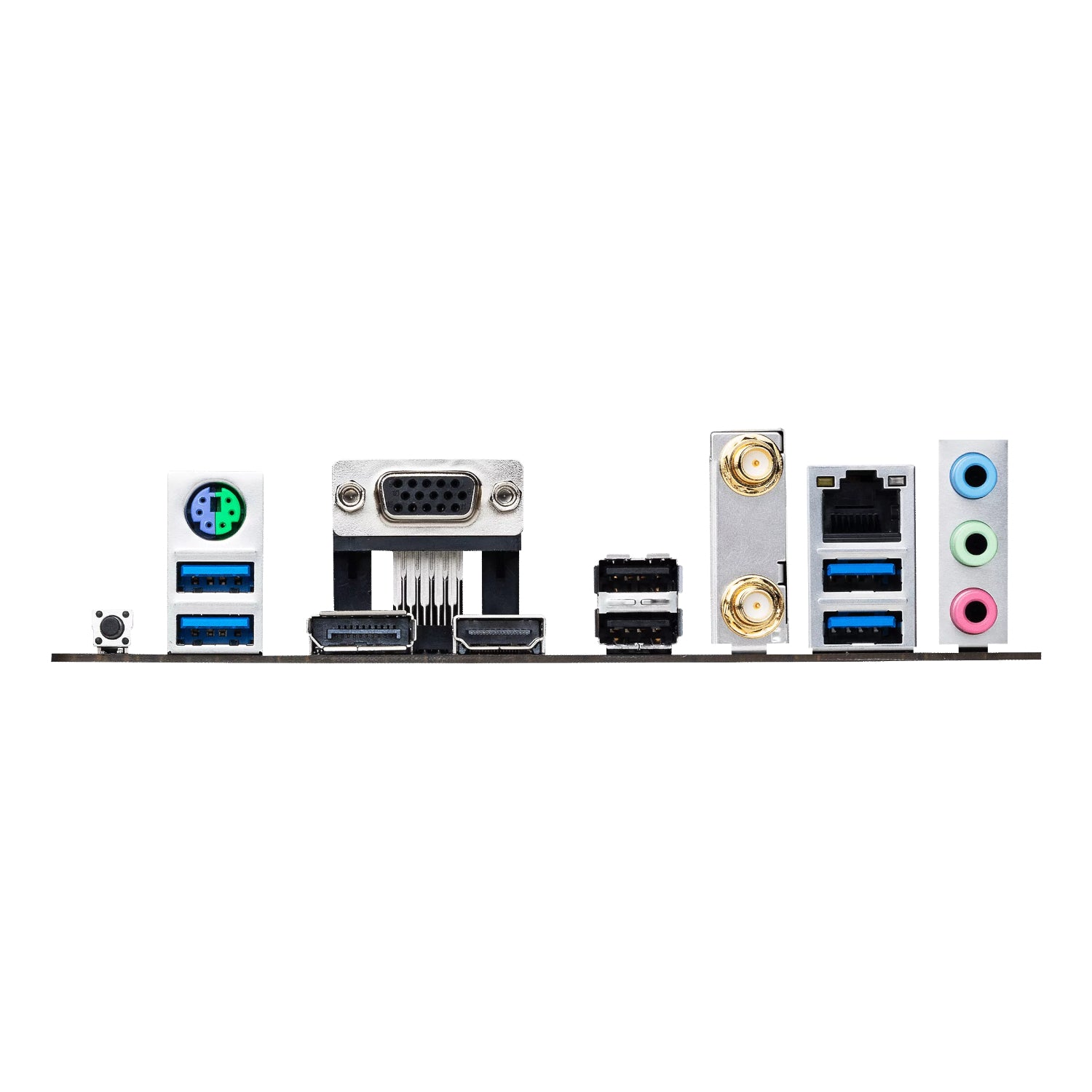

- Back Panel I/O Ports_
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x D-Sub
- 1 x ASUS Wi-Fi Module
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x PS/2 Keyboard/Mouse combo port
- Operating System_ Windows 10 64-bit
- Form Factor_ Micro-ATX
-

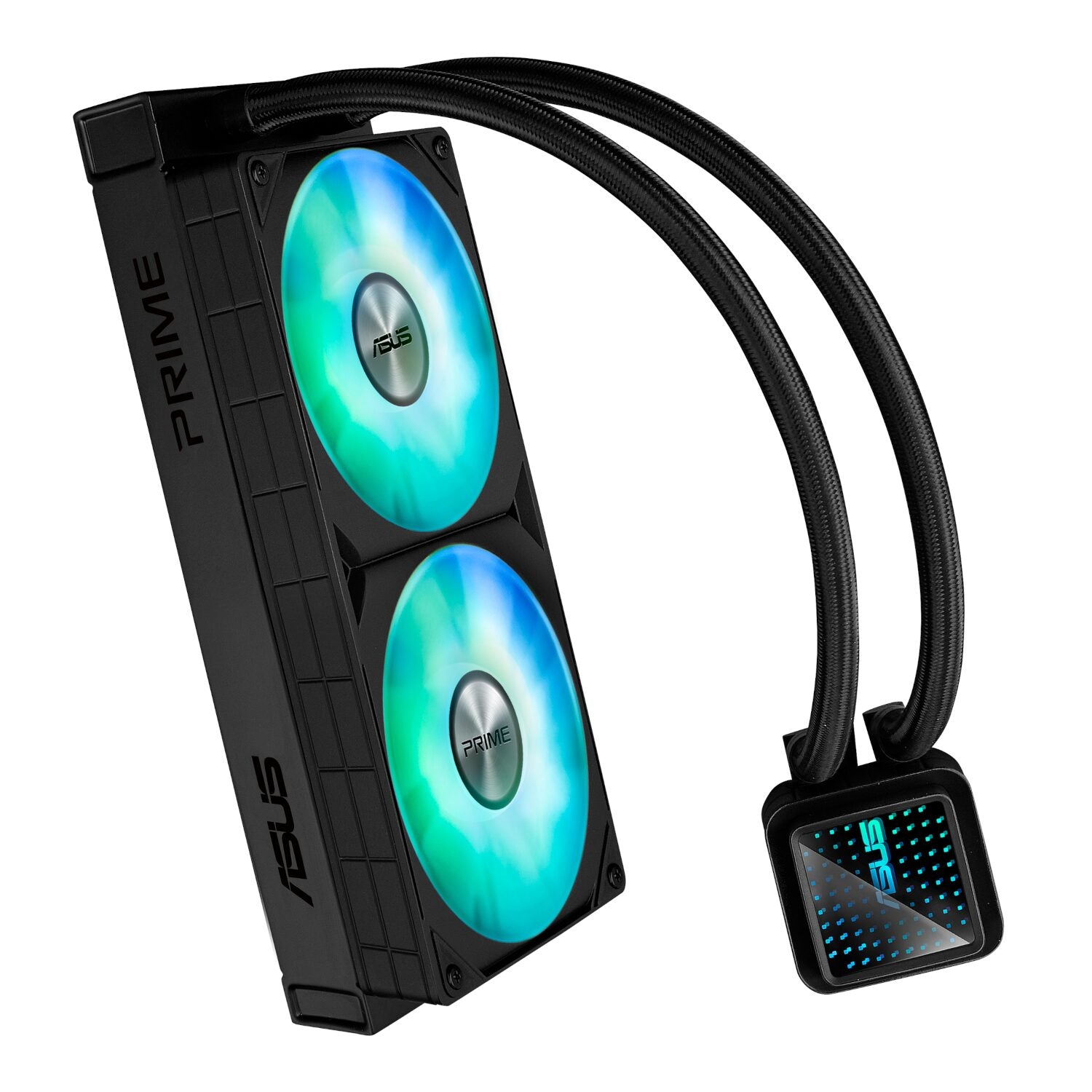

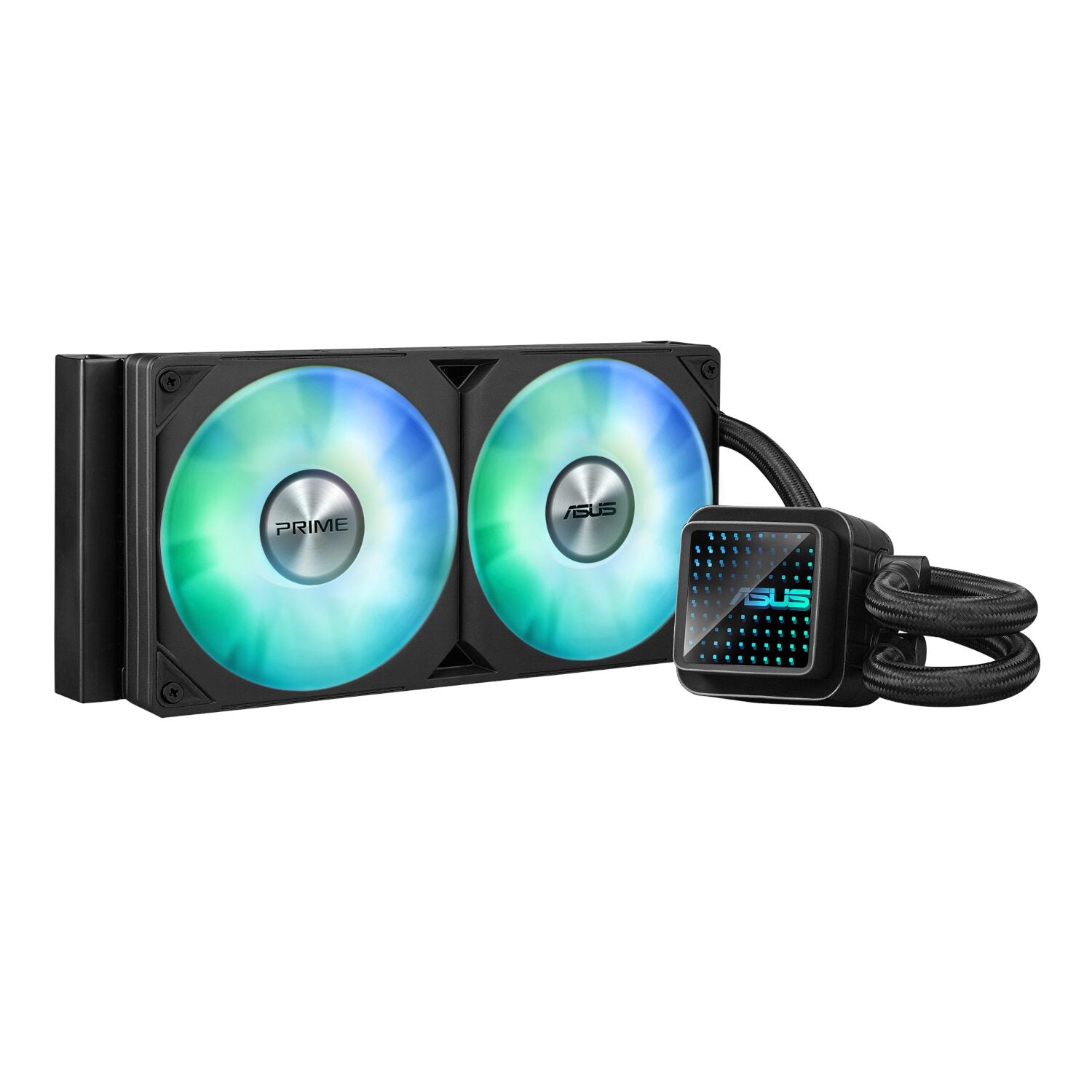

- ASUS Prime LC 240 ARGB Liquid CPU Cooler
- Water Block
- Water block dimension_ 6.51 x 6.0.6 x 6.85 cm
- Block Material (CPU Plate): Copper
- Radiator
- Radiator Dimension_ 27.7 x 12 x 2.7 cm
- Tube: Sleeved Rubber tube
- Tube Length_ 40 cm
- Fans
- Dimension:24 x 12.3 x 2.5 cm
- Size: 2 x Fan Slots (12cm)
- Speed: 600 – 2200 RPM +/- 10%
- Control Mode_ PWM/ DC
- Noise: 34 dB(A)
- Air Flow_ 75.7 CFM
- Static Pressure_ 3.2 mmH2O
- Special Features
- AURA Sync Support_ Yes
- Compatibility
- Intel LGA 1851, 1700, 1200, 115x
- AMD: AM5,AM4

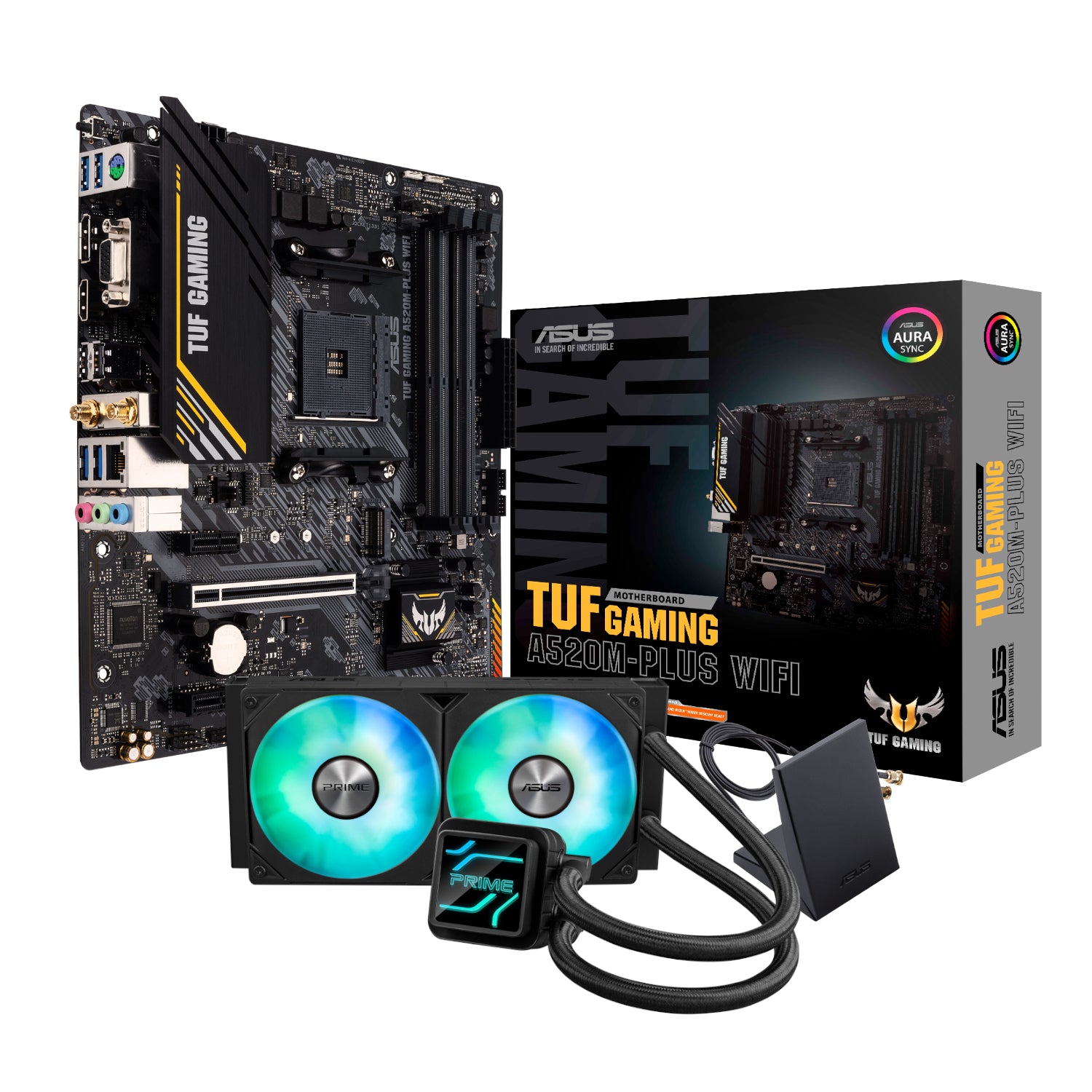

WHAT’S IN THE BOX_
- Asus TUF Gaming A520M-PLUS WiFi AM4 M-ATX Gaming Motherboard – Black x1
- ASUS Prime LC 240 ARGB Liquid CPU Cooler x1
- Quick Start Guide x1
- Accessory Pack of Screws and Brackets x1
