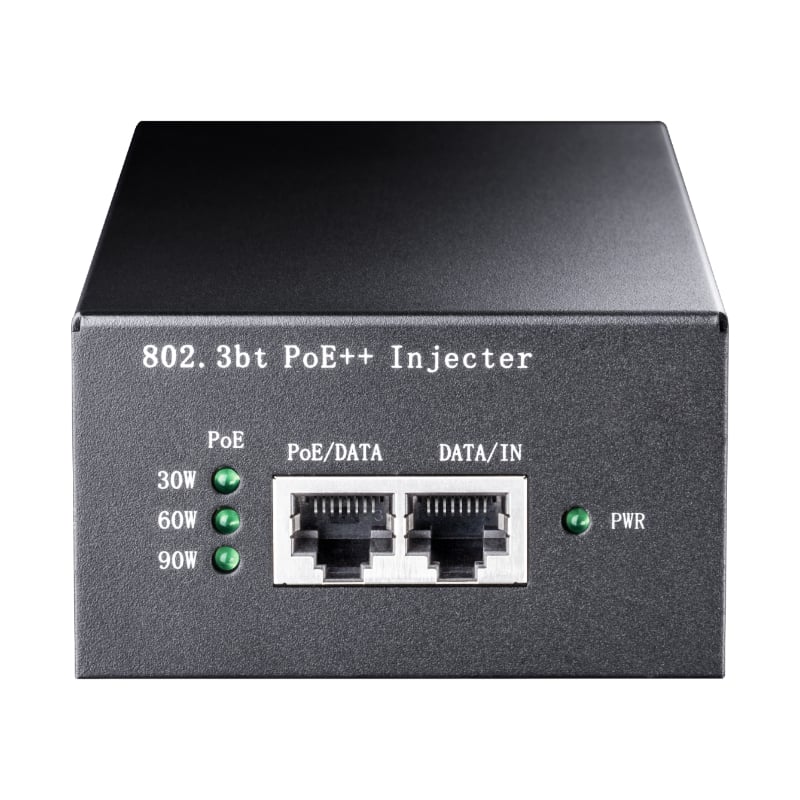

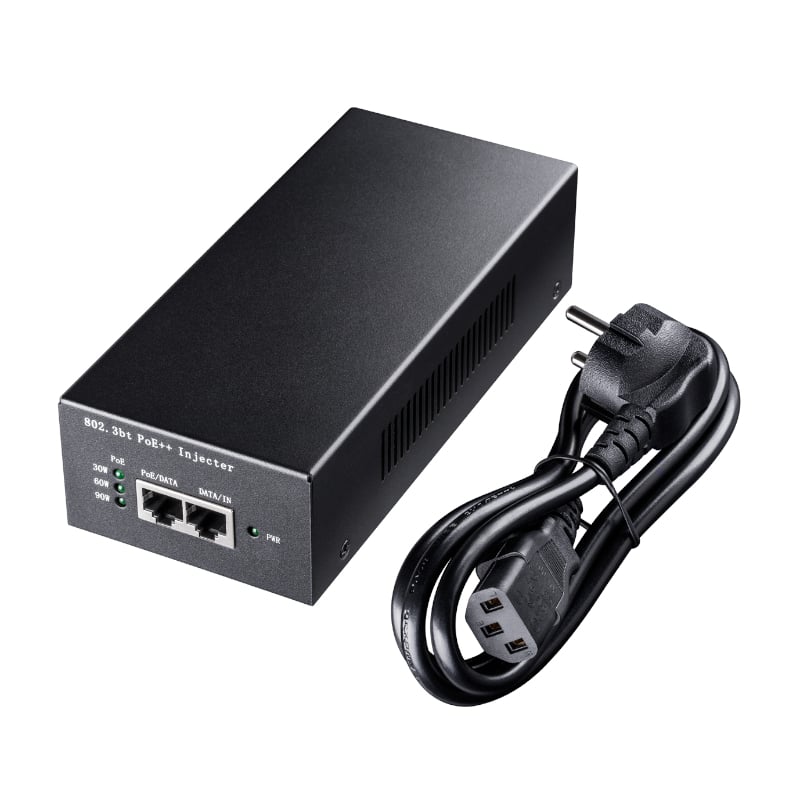

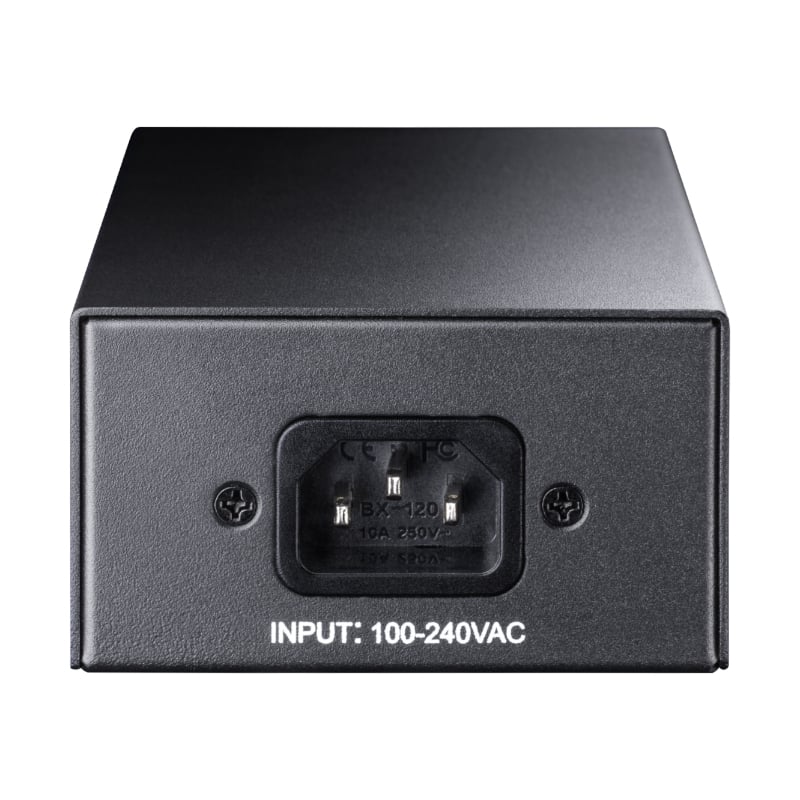

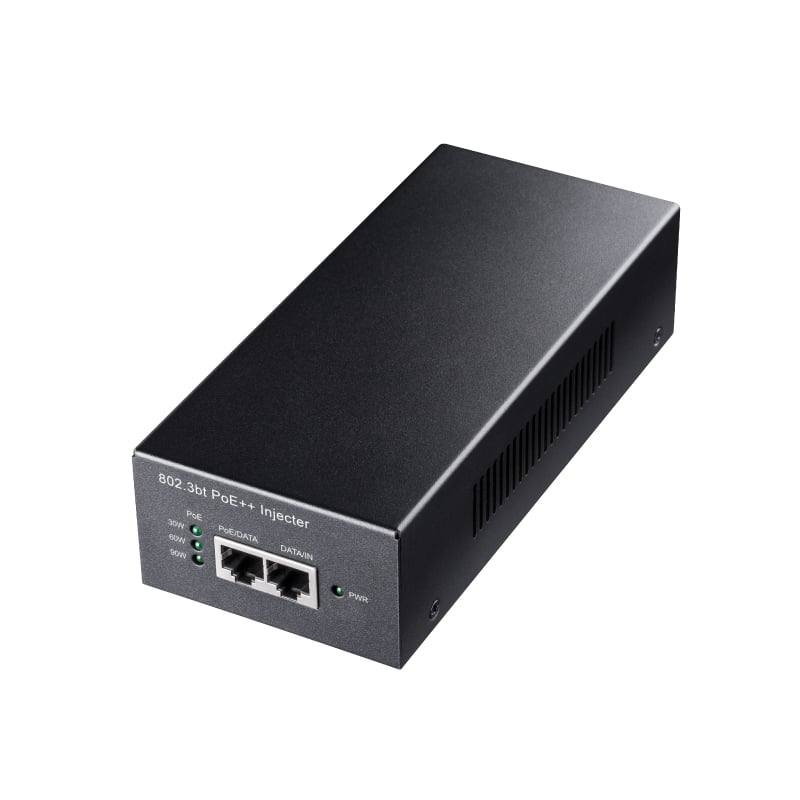

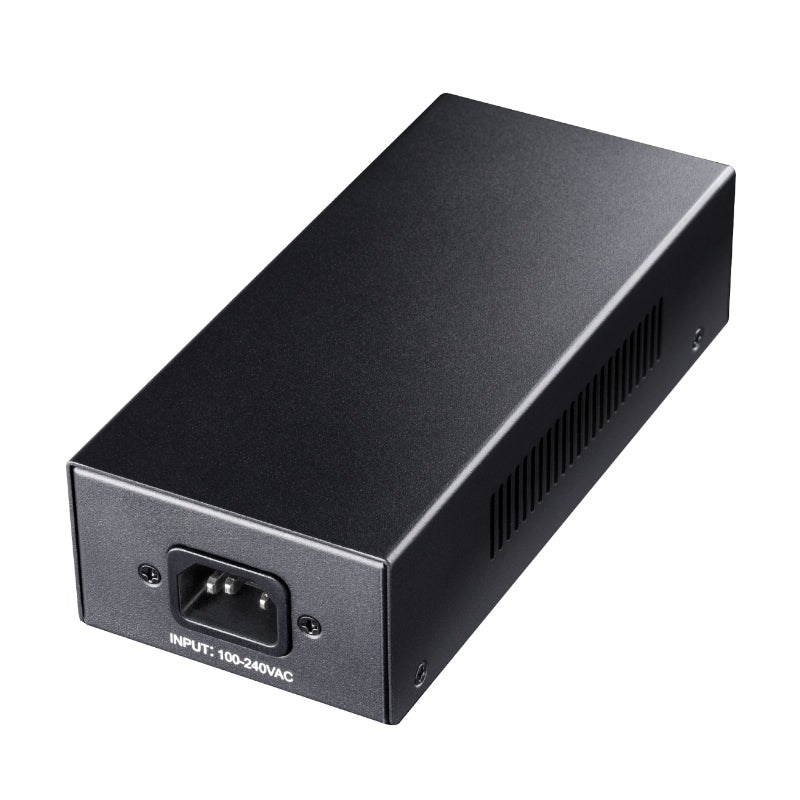

Cudy 90W Gigabit PoE+ Injector

The Cudy POE400 90W Gigabit PoE/PoE+/PoE++ Injector is a great way to provide power over ethernet to all your compatible network and IP devices. It works well with various devices including IP cameras for home, office and small businesses, VOIP phones for business conferences, and WiFi Access Points for office and business. The POE400 is very versatile and can be easily mounted on the wall.

FEATURES:

• Full IEEE 802.3af IEEE 802.3at, IEEE802.3bt Compliant
• Up to 90W of Power on 4-pairs
• Auto-detect of POE IEEE 802.3af IEEE 802.3at, IEEE802.3bt equipment
• Supports 10/100/1000Base-T applications
• LED indicators power input indication
• Distance up to 100 meters
• Internal AC/DC converter – no need for external power modules
• Easy plug-and-play installation
• Surge protection

SPECIFICATIONS:

• No. of channels_ 1
• Pass-Through Data Rates_ 10/100/1000Mbps
• Power over Ethernet Output_
  • Pin Assignment and Polarity_ 1/2 (-), 3/6 (+),4/5 (+), 7/8 (-),
  • Output Power Voltage_ 56Vdc
  • User Port Power_ 90W
• Input Power Requirements_
  • AC Input Voltage_ 100 to 240 VAC
  • AC Input Current_ 1A 100-240 VAC
  • AC Frequency_ 50 to 60 Hz
• Indicators:
  • System Indicator_ AC Power
  • User Indicator_ Channel Power
• Connectors: Shielded RJ-45, EIA 568A and 568B
• Protection:
  • Over-current protection
  • Over-load protection
  • Over-voltage protection
  • Anti-interference protection
• Regulatory Compliance_
  • IEEE 802.3af (15.4W)
  • IEEE 802.3at (30W)
  • IEEE802.3bt (90W)
• Environmental Conditions
  • Operating Ambient Temperature_0 to 45℃
  • Operating Humidity_ Maximum 80%, Non-condensing
  • Storage Temperature_-20 to 70℃
  • Storage Humidity_ Maximum 80%, Non-condensing
• Product Dimensions_ 17.8 x 8 x 4.6 cm

WHAT'S IN THE BOX_

• Cudy POE400 90W Gigabit PoE/PoE+/PoE++ Injector - Black x1
