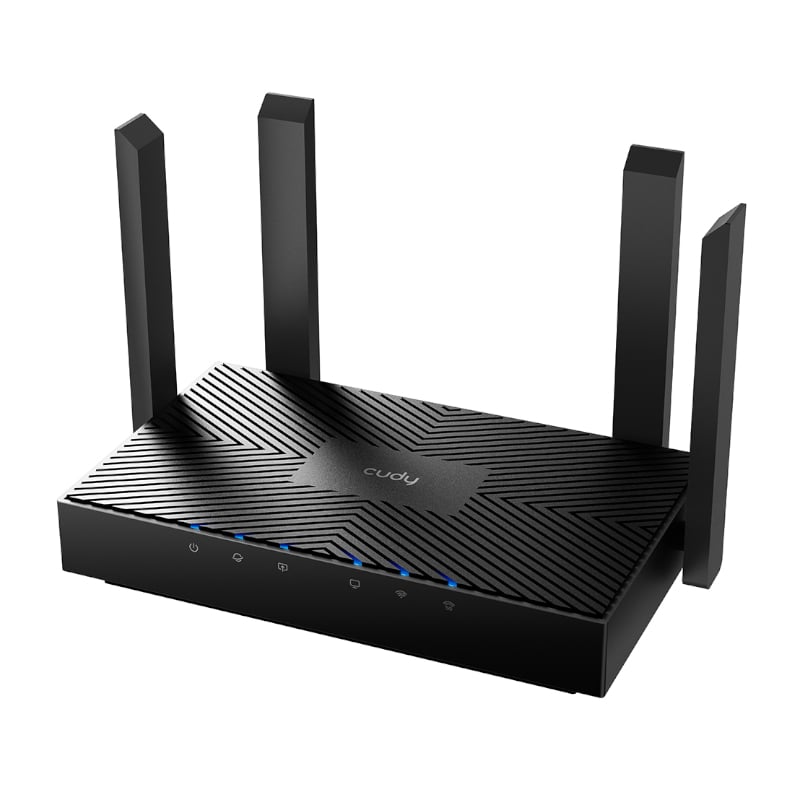

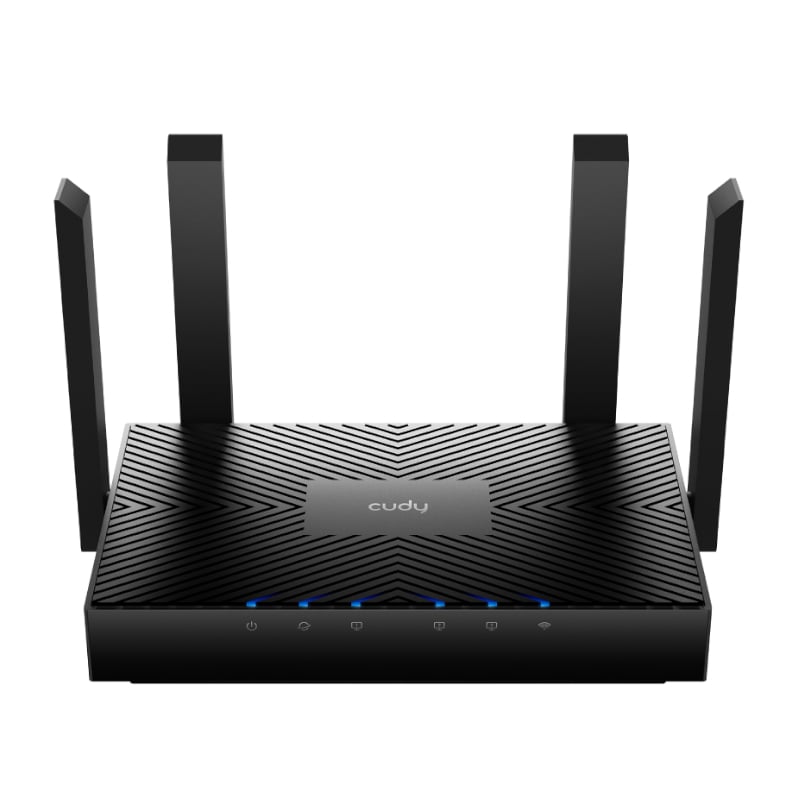

Cudy AX3000 Gigabit Wi-Fi 6 Mesh Router

The Cudy WR3000 AX3000 Gigabit Dual Band Wi-Fi 6 Mesh Router features a new Wi-Fi 6 chip with a 4-nm made process, delivering amazing powers and an impressive efficiency bump, enabling the AX3000 to maintain responsiveness and handle intensive transmission tasks such as online gaming streams and 4K live feeds. Equipped with Wi-Fi 6, the AX3000 boasts the highest 160Mhz bandwidth and 1024-QAM to reach up to 3Gbps speeds, which is more than 2.5x faster than the last-gen AC 2×2 Wi-Fi router. This high throughput allows massive amounts of data including your 4K video streaming and hopping to end devices without any throttling. The upgraded Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA, providing up to 8X (2.4 GHz) to 16X (5 GHz) greater network capacity to be more responsive under heavy use.

FEATURES:

• Super-Fast AX3000 Wi-Fi 6
• 1.3 GHz Dual-Core Cortex-A53 CPU
• 4× 10/100/1000Mbps Ethernet Ports
• 160 MHz Channel Width
• DL/UL OFDMA and DL/UL MU-MIMO
• Wireguard/OpenVPN/L2TP/PPTP VPN Server and Client
• IPv4/IPv6
• TR069/TR098/TR181/TR111

SPECIFICATIONS:

• Processor: 1.3 GHz Dual-Core ARM Cortex-A53 CPU
• Antennas: 4 × Fixed Omnidirectional Antennas

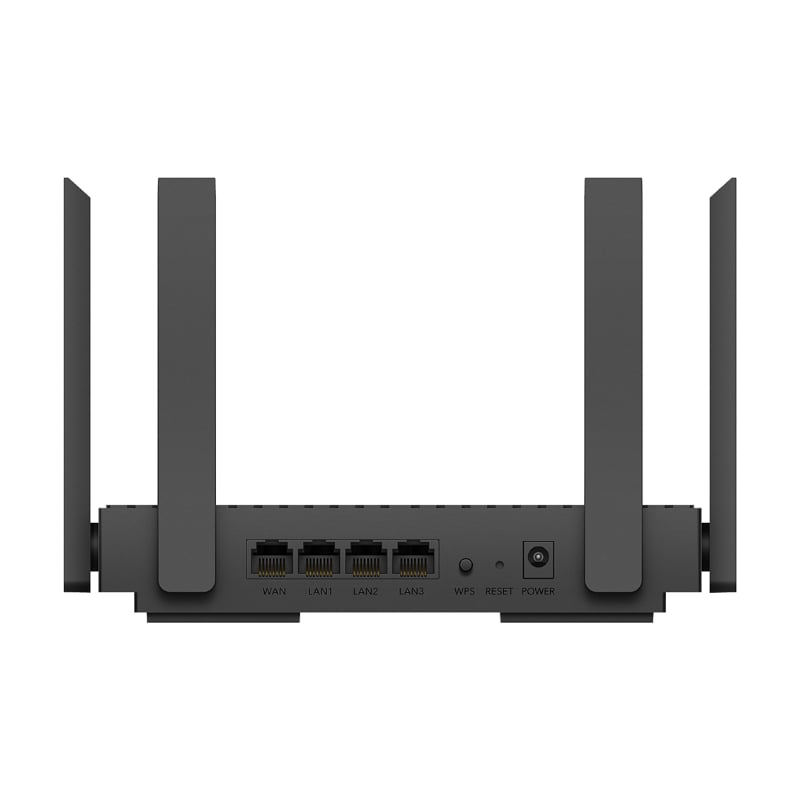

• Ethernet Ports_
• 1 × 10/100/1000Mbps WAN Port
• 3 × 10/100/1000Mbps LAN Ports
• Buttons: WPS Button, Reset Button
• External Power Supply_ 12 V / 1 A
• Product Dimensions without Antennas_ 18 x 10.7 x 3.5 cm
• Product Dimensions with Antennas_ 20 x 11.7 x 3.5 cm
• Wireless Standards_ IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11ax/n/b/g 2.4GHz
• Wireless Frequency_ 5GHz, 2.4GHz
• Wireless Bandwidth_ 20/40/80/160 MHz
• Signal Rate_
• 2402Mbps (5 GHz), 574Mbps (2.4 GHz)
• Compatible with 802.11a/b/g/n/ac Wi-Fi standards
• Transmit Power_
• CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• FCC: <30d Bm (2.4 GHz & 5 GHz)
• Wireless Modes_ Enable/Disable Wireless Radio, WMM
• Wireless security_ WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3
• Other Features_ MU-MIMO, Beamforming
• VPN Server and Clinet_ Wireguard/OpenVPN/L2TP/PPTP
• DNS over TLS_ Cloudflare/Google/Quad9
• WAN Type_ Dynamic IP/Static IP/PPPoE
• DHCP: Server, DHCP Client List, Address Reservation
• Dynamic DNS_ Compatible with 15 more DDNS providers
• Guest Network_
• 2.4 GHz guest network × 1
• 5 GHz guest network × 1
• NAT: Port Forwarding, Port Triggering, UPnP, DMZ
• System Requirements_
• Microsoft Windows, macOS, NetWare, UNIX or Linux
• Firefox 12.0, Chrome 20.0, Safari 4.0, or other Javascript-enabled browsers
• A Cable or DSL Modem, or other devices providing wired internet
• Subscription with an internet service provider for internet access
• Product Dimensions_ 20 x 11.7 x 3.5 cm (Antennas not included)

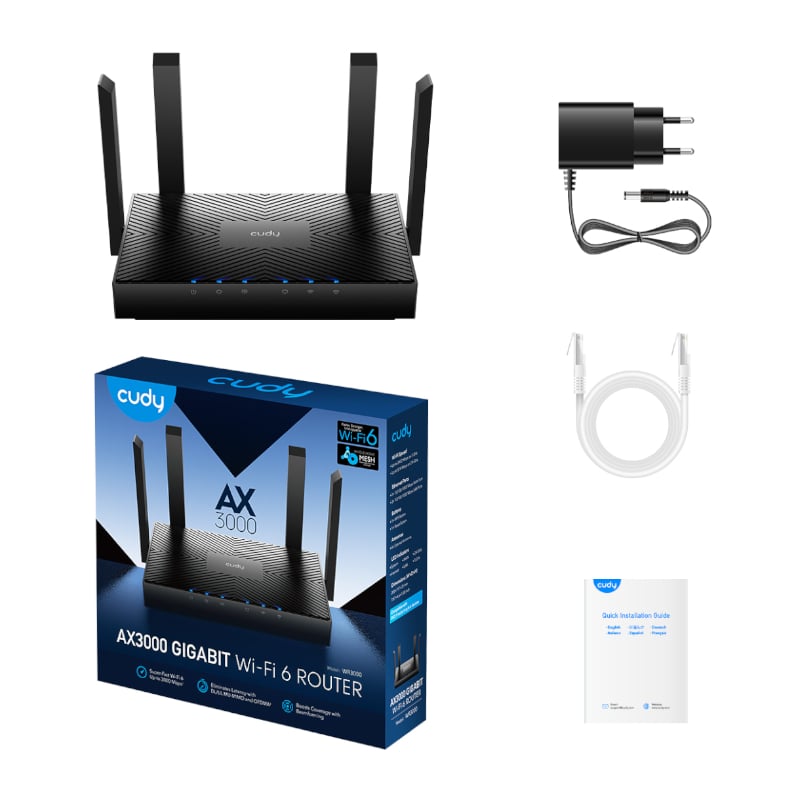

WHAT'S IN THE BOX_

• Cudy WR3000 AX3000 Gigabit Dual Band Wi-Fi 6 Mesh Router -Black x1
• Power Adapter x1
• RJ45 Ethernet Cable x1
• Quick Installation Guide x1
