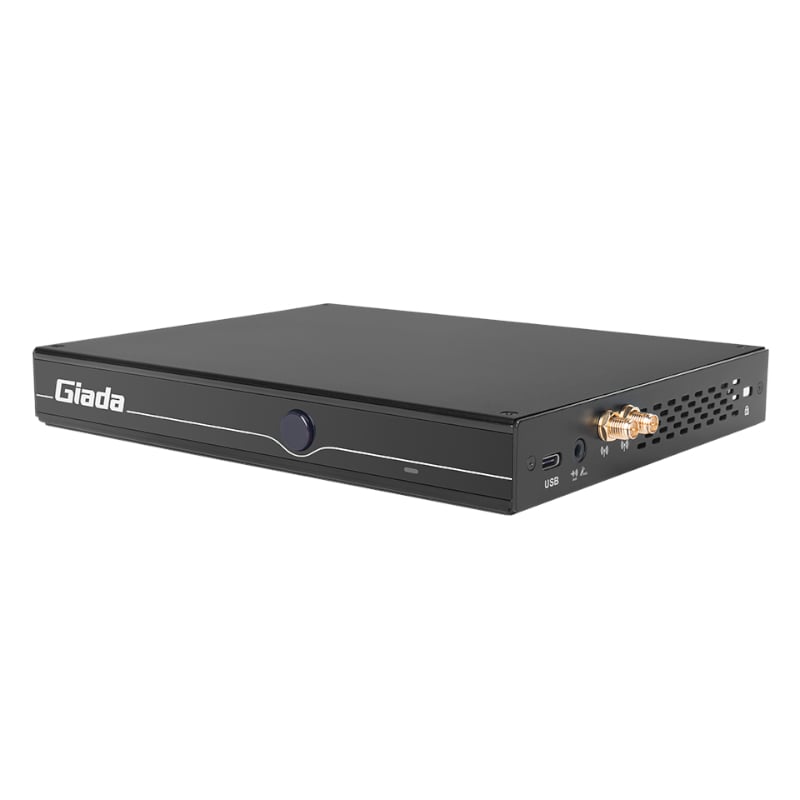

Giada D612 i3-1215U 2x DDR4 3200Mhz

The Giada D612 Intel Core i3 High-end Digital Signage Player is an embedded computer that is excellent for jobs in hospitality, retail, commercial, service, and advertising. Its small and powerful design provides enterprises with the performance and efficiency of the Intel® Core™ i3-1215U processor, as well as 4 HDMI connections that supports up to 4K resolution. Its HDMI, USB connections, Gigabit Ethernet, Wi-Fi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards make it extremely adaptable. It may also be installed in a variety of ways and simply hidden behind a monitor or big format display thanks to its VESA mount capability.

FEATURES:

• Intel® Core™ i3-1215U processor
• 4 x HDMI, Supporting 4K Display
• 2 x SO-DIMM DDR4 Memory, Up to 64GB
• 1 x M-key M.2 (2242/2280) for SSD
• Supporting RJ45, Wi-Fi 6(CNVi), 3G/4G/5G Ethernet Access

SPECIFICATIONS:

• Processor:
• CPU: Intel® Core™ i3-1215U processor
• Frequency: 3.30GHz (Up to 4.40GHz )
• Cores: 6
• BIOS: AMI EFI 64 Mbit
• Memory:
• Type: DDR4-3200MHz
• Socket: 2 x SO-DIMM
• Max Size_ 64GB
• Graphics:
• GPU: Intel® UHD Graphics
• Graphic Engine_ DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4_2:0 HEVC/VP9/SCC
• HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz)
• Network:
• Controller: 1 x Intel® i219LM Gigabit Ethernet
• Interface: 1 x RJ45
• Mobile Network_ 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)

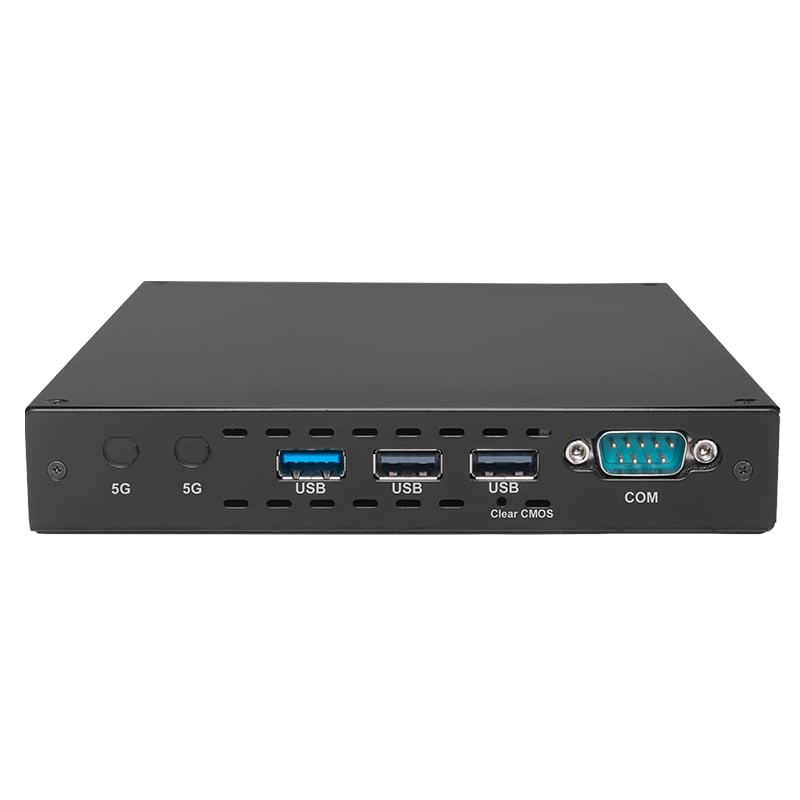

• I/O:
• USB: 1 x USB3.2 Gen2, 2 x USB2.0
• USB Type-C: 1 x USB Type-C3.2 Gen2
• Serial Port_ 1 x RS232
• Audio: 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
• Button: 1 x Power on, 1 x CLR-CMOS
• Storage:
• M.2: 1 x M-key M.2 (2242/2280) for NVMe
• JAHC Tech_
• WatchDog Timer_ 0~255 Second Time Out Support
• Auto Power On_ Power Activated Automatically Start
• Operation System_
• Windows: Windows 11 (64bit)
• Linux: Linux Ubuntu (64bit)
• Power:
• Power Type_ DC-IN
• Input Voltage_ 12V/19V
• Environment:
• Operating Temperature_ 0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
• Relative Humidity_ 95%@40℃ (non-condensing)
• Certification: CE, FCC Class B, CCC
• Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
• Construction: Metal
• Colour: Black
• Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX_

• Giada D612 Intel Core i3 High-end Digital Signage Player – Black x1
• Wi-Fi Antenna x2
• User Manual x1
