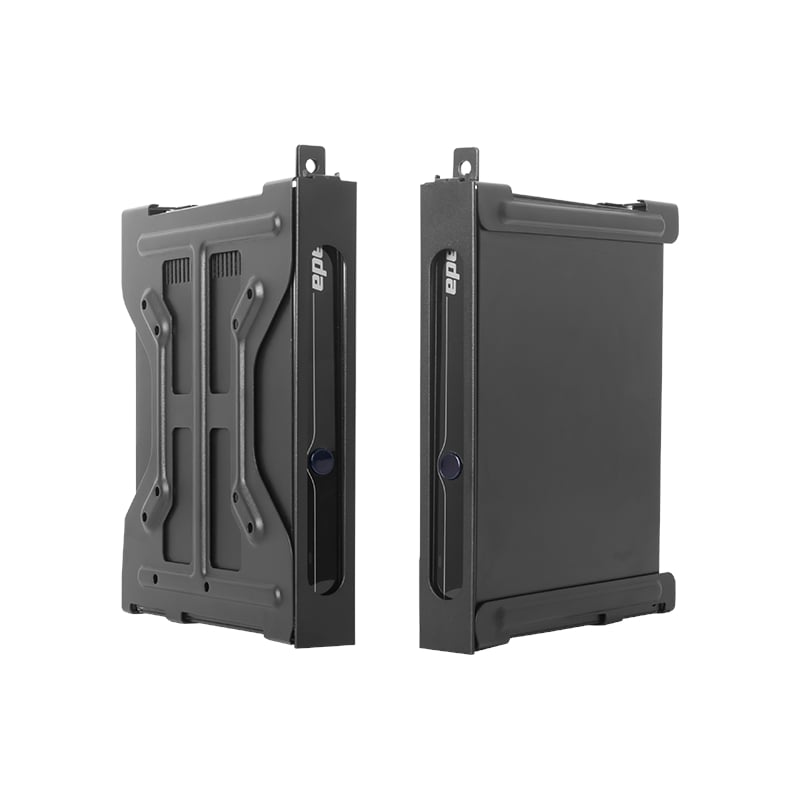

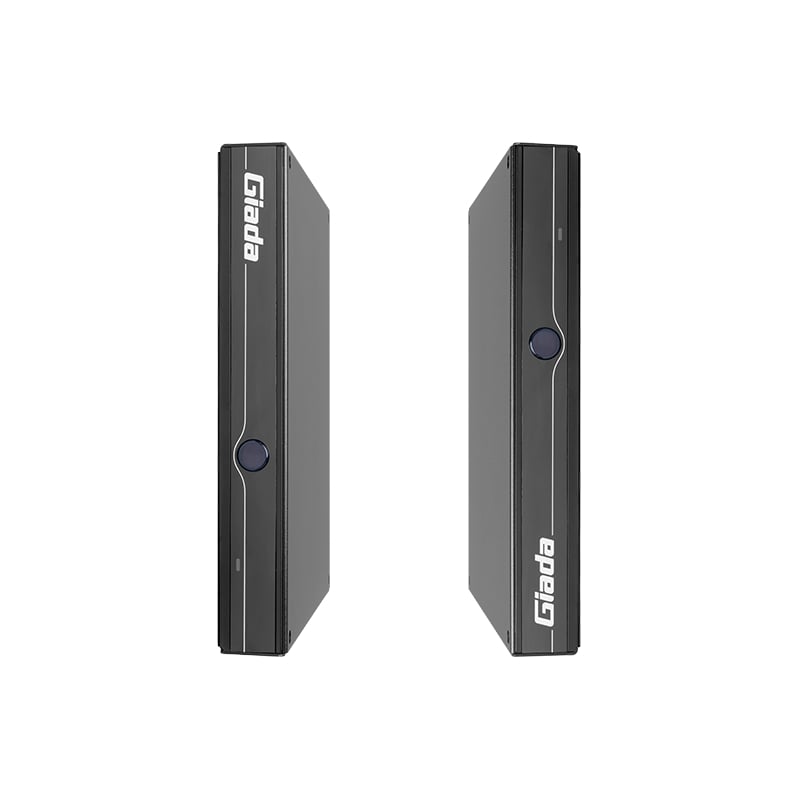

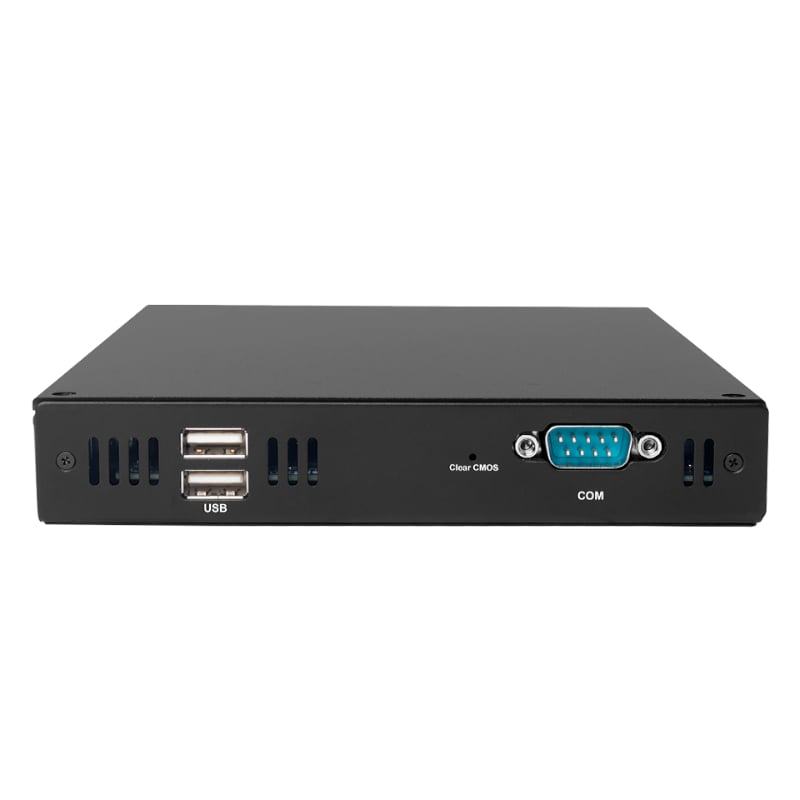

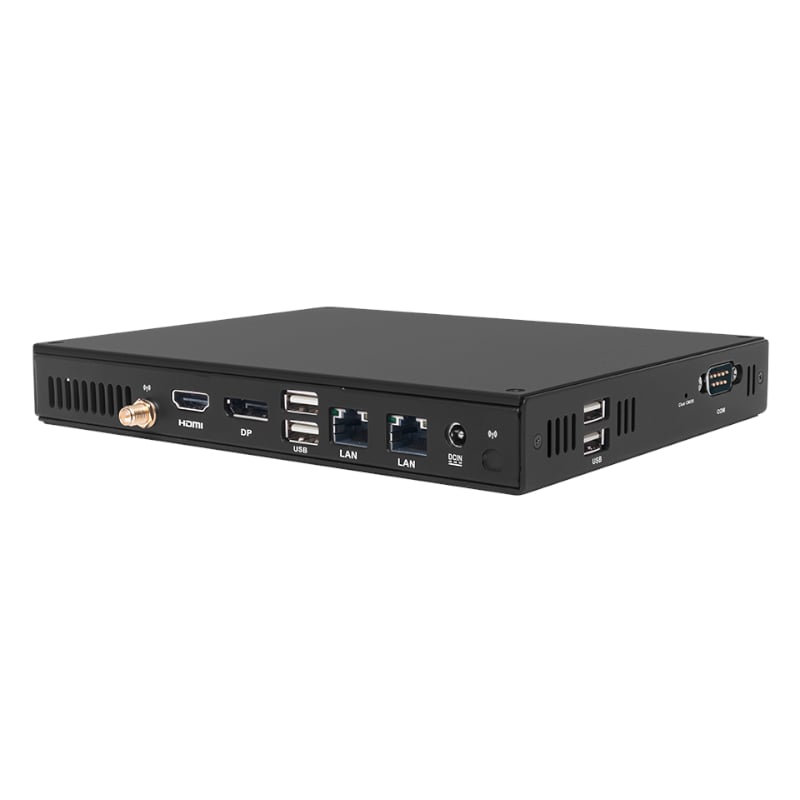

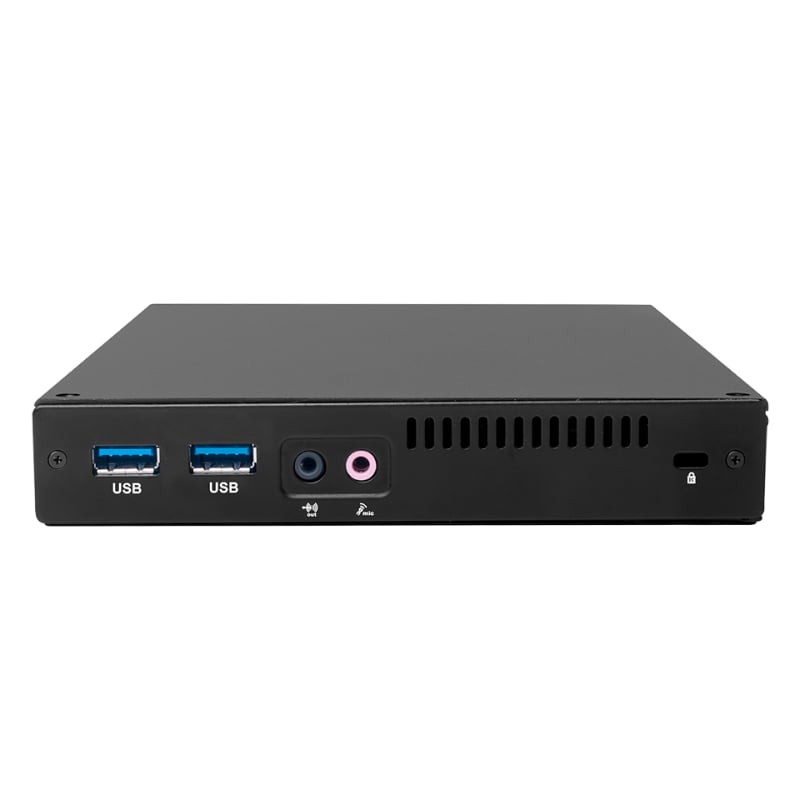

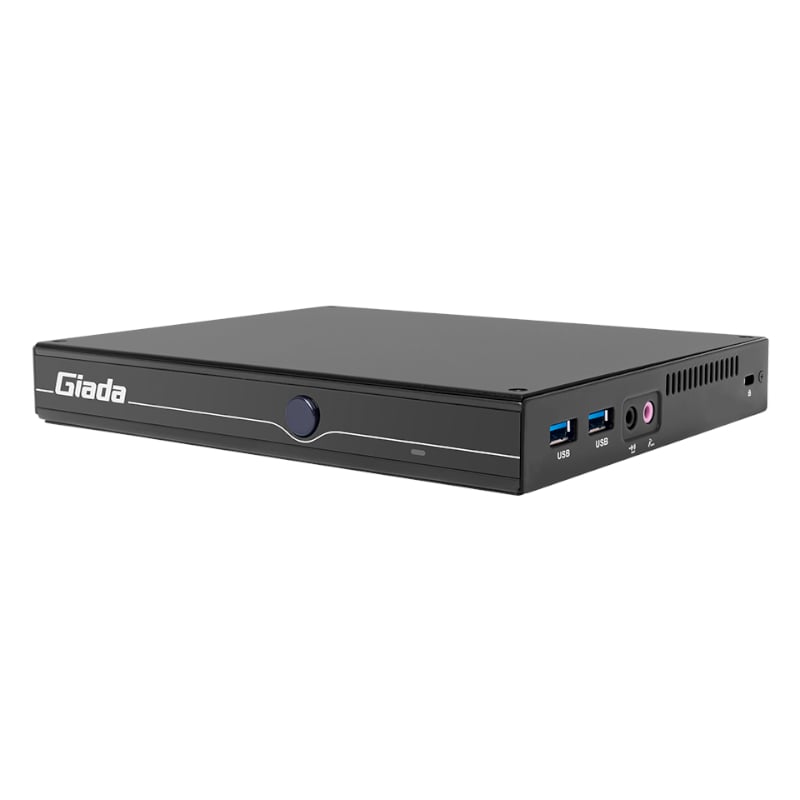

Giada F106D Celeron N5100 4GB eMMC

FEATURES:

• Intel® Celeron® N5100 Processor
• 1 x DP, 1 x HDMI, Supporting 4K Display
• Onboard LPDDR4 4GB
• 2 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for Wi-Fi/BT
• Long life cycle
• Fanless Design

SPECIFICATIONS:

• Processor:
• CPU: Intel® Celeron® N5100 processor (Fanless)
• Turbo Frequency_ 2.80 GHz/2.90 GHz
• Chipset: SoC
• Processing Units_ 4 Cores/4 Cores
• Memory:
• Type: Onboard LPDDR4-2666 MHz
• Size: 4GB
• Storage Supported_
• Socket 1_ 1 x M-Key M.2 (2242/2280) for SSD (only PCIe SSD)
• Socket 2_ 1 x Full-size Mini-PCIe for MSATA
• Graphics:
• GPU: Intel® UHD Graphics
• Graphic Engine_ DirectX 12.1, OpenGL 3.0, OpenCL 1.1, OpenGL ES 2.0, H.264, MEPG2
• DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
• HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
• Network:
• Controller: Realtek RTL 8111H Gigabit Ethernet
• Interface: 2 x RJ45
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
• Mobile Network_ 3G/4G colay with 1 x Mini-PCIe for MSATA, 1 x SIM Slot
• I/O:
• USB: 2 x USB3.2 Gen2, 4 x USB2.0
• Serial Port_ 1 x RS232
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Antenna: 2 x Connector for Wi-Fi/BT, 1 x Connector for 3G/4G (Reserved)
• Button: 1 x Power on, 1 x CLR-CMOS
• System:
• TPM: TPM2.0
• Watchdog Timer_ Yes
• Auto Power on_ Yes
• RTC: Set up independently every day
• Remo on_ Yes
• Fanless: Yes
• Operation System_
• Windows: Windows 10 (64Bit), Windows 11 (64bit)
• Linux: Linux Ubuntu (64bit)
• Power:
• Power Type_ DC-IN
• Input Voltage_ 19V/2.37A
• Environment:
• Operating Temperature_ 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
• Relative Humidity_ 95% @ 45°C (non-condensing)
• Certification: CE, FCC Class B
• Construction: Metal
• Fanless: Yes
• Colour: Black
• Dimensions: 18.9 x 14.8 x 2.6 cm

WHAT’S IN THE BOX_

• Giada F106D Intel Celeron Ultra-compact Fanless Player 4 GB – Black x1
• Wi-Fi Antenna x2
• AC Power Adapter x1
• Power Cable x1
• User Manual x1
