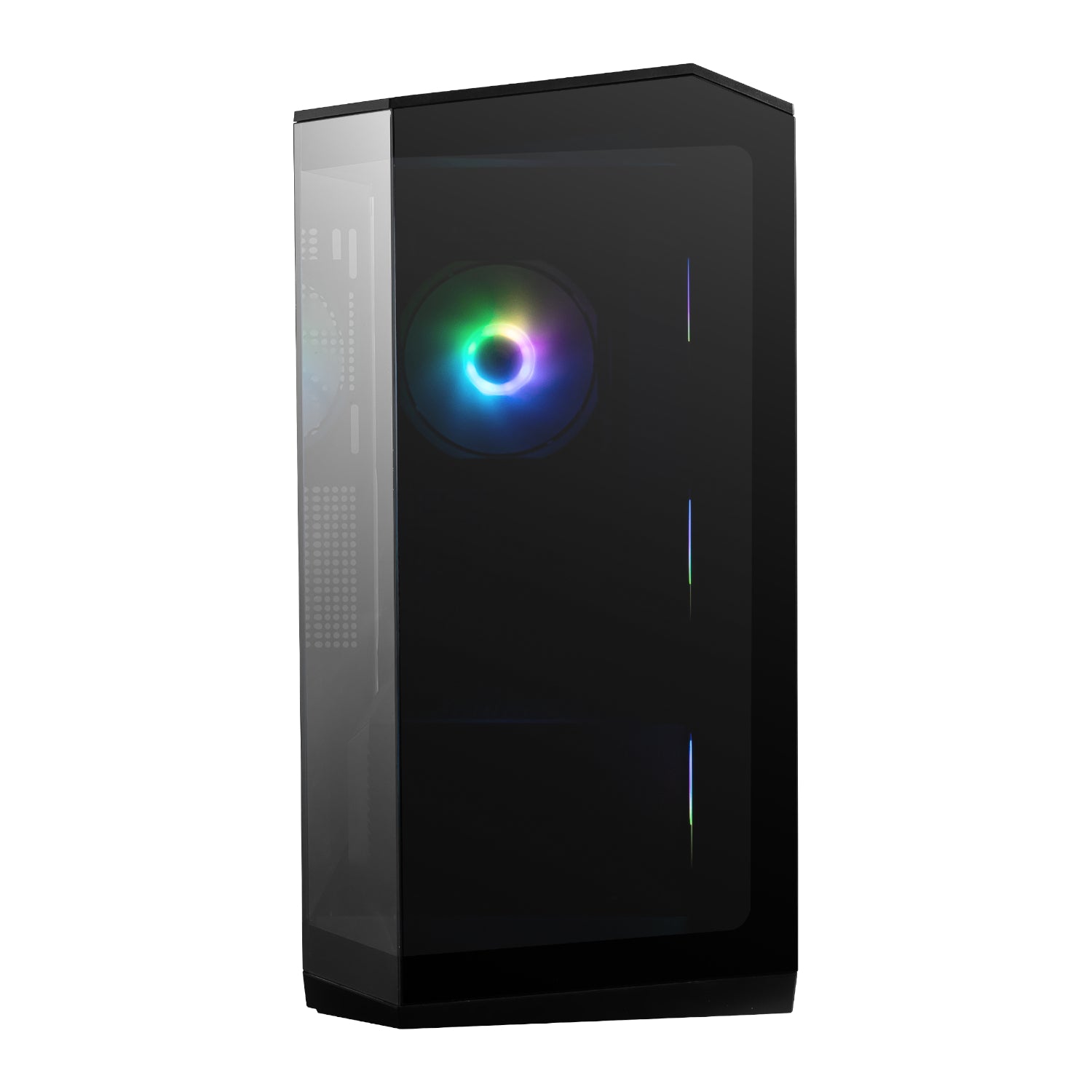

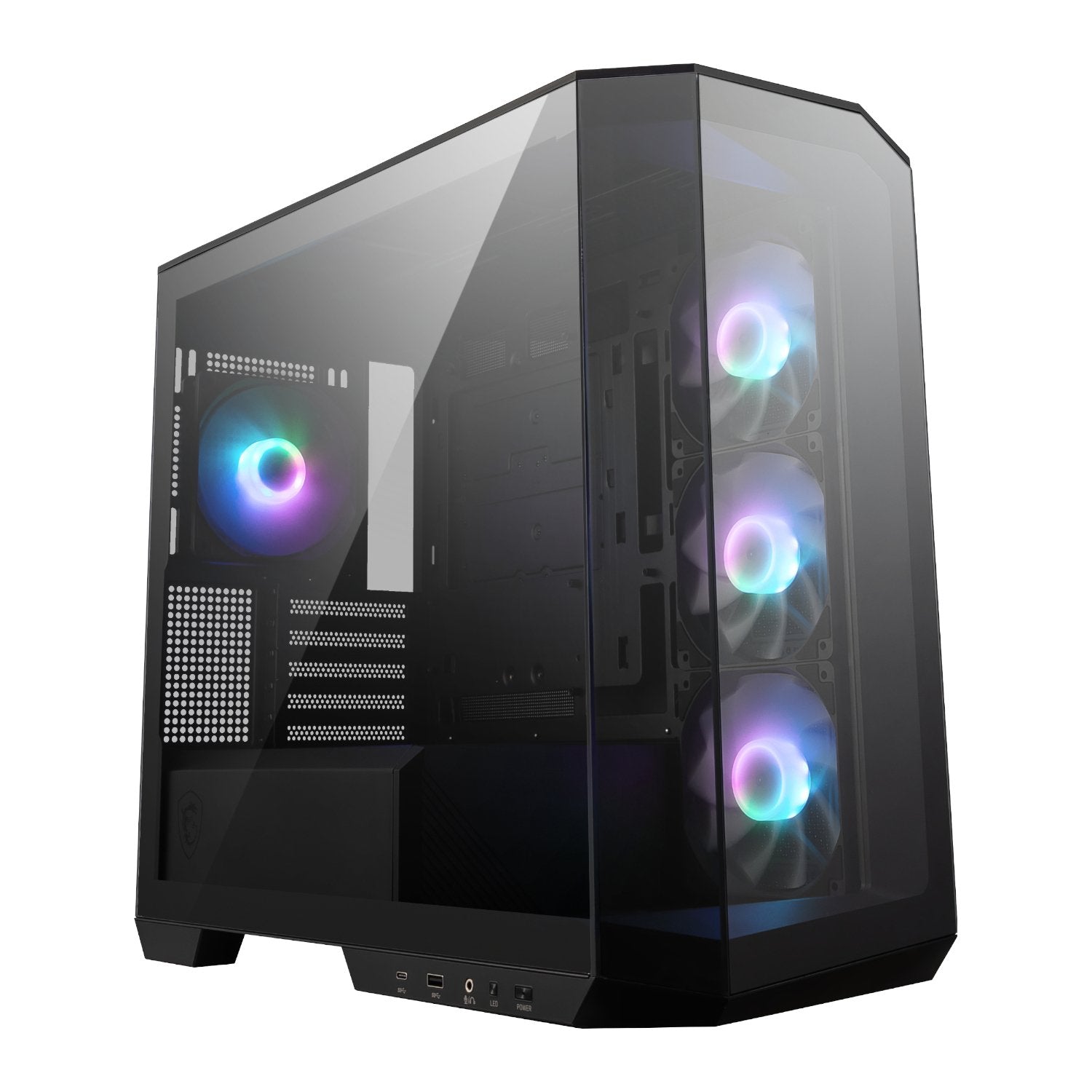

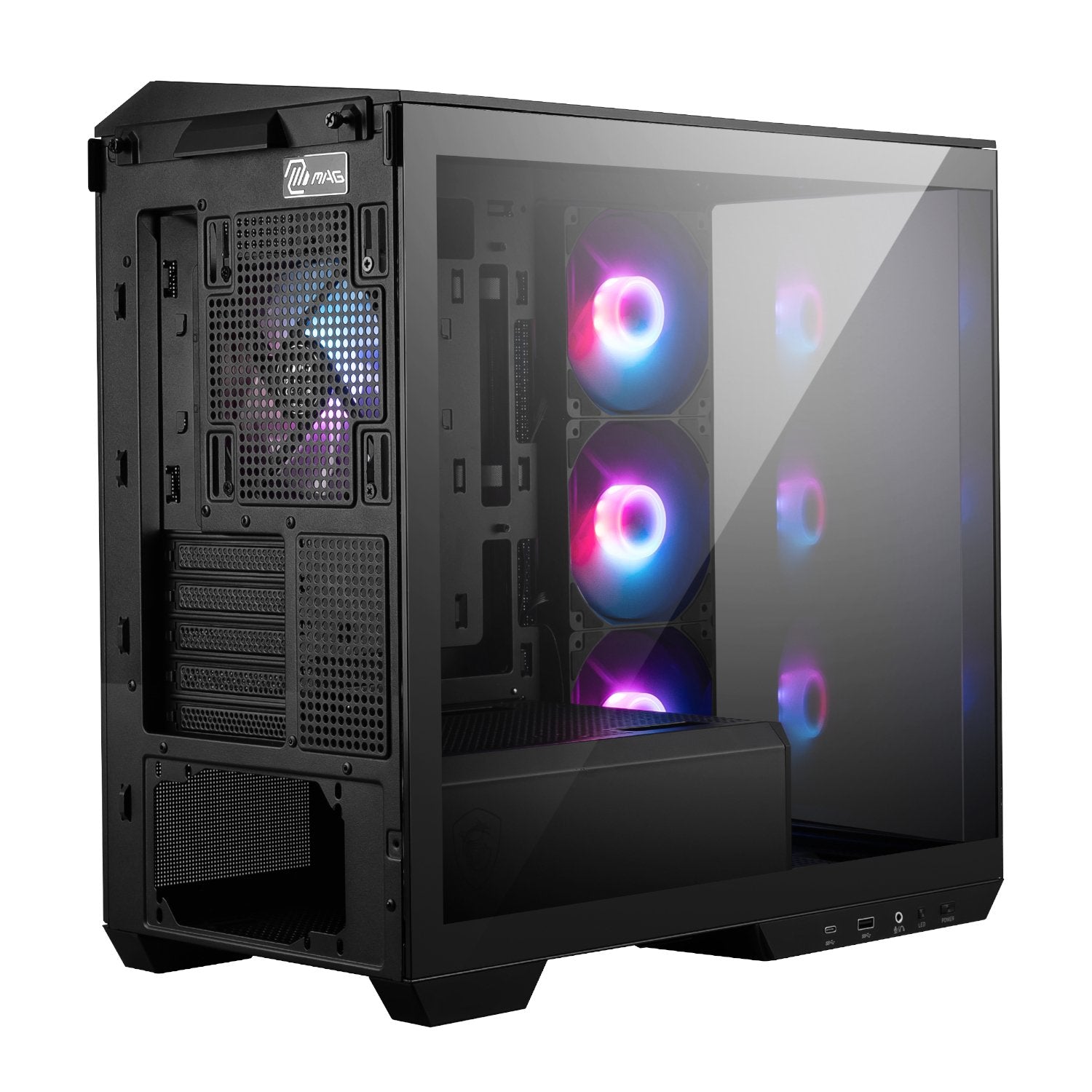

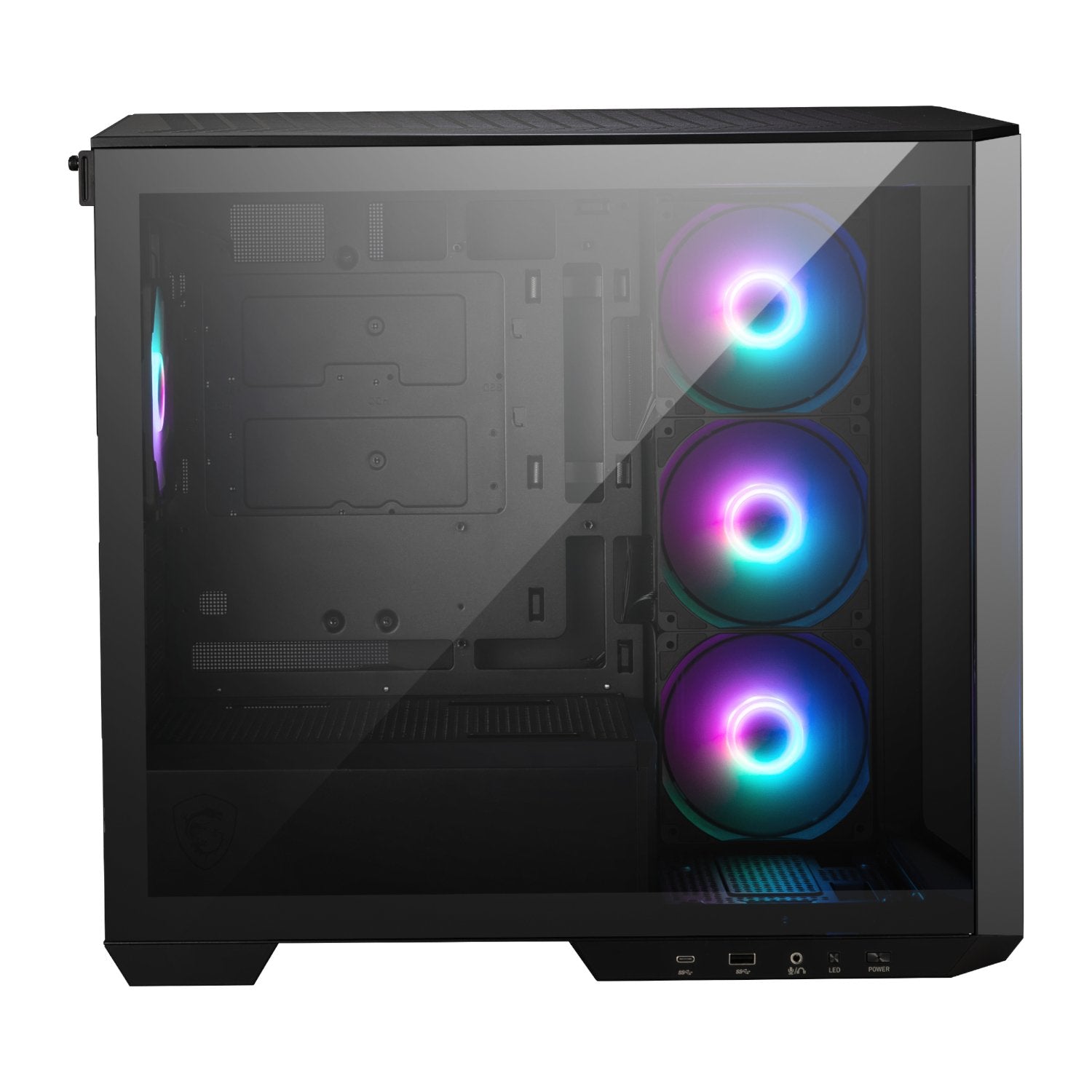

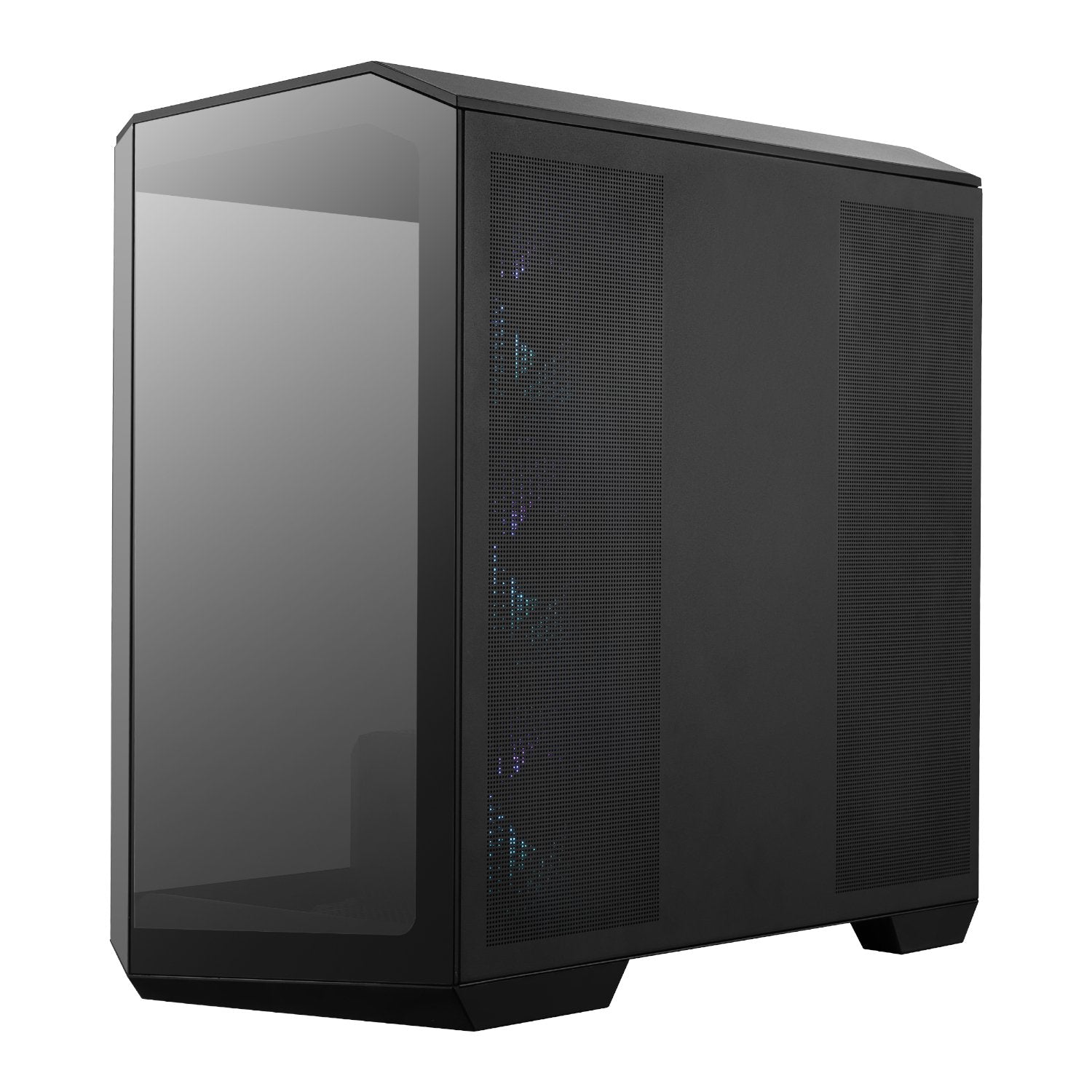

MSI MAG PANO M100R PZ M-ATX ARGB Gaming Chassis - Black

The MAG series fights alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. This versatile gaming chassis has many features that make the installation process all the easier.

To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, a 1-to-4 ARGB-PWM control board to let user organize cables easily.

Synergize the MAG PANO M100R PZ series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high-speed data transmission.

FEATURES:

• Micro-ATX Back-connect PROJECT ZERO motherboard supported
• Supports up to 360 mm AIO liquid cooler on the top
• 270-degree panoramic tempered glass
• Supports up to 10 x 120 mm system fans
• Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects
• The Magnetic Dust Filter at the bottom being easily removed for cleaning
• DIY Friendly cables make your DIY process easier and create more possibilities to your system

SPECIFICATIONS:

• Form Factor_ Micro-ATX Mid Tower
• Motherboard Form Factor Support_ Micro-ATX(Back-connect supported)/Mini-ITX
• I/O Ports_ 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x Audio-Out / Mic-in, 1 x LED Switch Button, 1 x Power Button
• Drive Mount Support_ 1 x 2.5”, 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)
• Expansion Slots_ 5
• Maximum GPU Length_ 390 mm
• Maximum CPU Cooler Height_ 175 mm
• Power Supply Support_ ATX
• Maximum PSU Length_ 200mm
• Fan Size Support_
  • Top: 3 x 120 mm / 2 x 140 mm
  • Front: NA
  • Rear: 1 x 120 mm / 1 x 140 mm
  • Side: 3 x 120 mm
  • Bottom: 1 x 120 mm
  • PSU Shroud_ 2 x 120 mm
• Pre-Installed Fan Size_
  • Front: 3 x 120 mm
  • Rear: 1 x 120 mm
• Pre-Installed Fan Type_
  • Front: 3 x ARGB Fan (Reverse-blade)
  • Rear: 1 x ARGB Fan
• Radiator Size Support_
  • Top: 120 / 240 / 360 mm
  • Front: NA
  • Rear: 120 / 140 mm
  • Side: NA
  • Bottom: NA
• Colour: Black
• Product Dimensions_ 48.8 x 23.5 x 45.3 cm
• Product Weight_ 8660g

WHAT'S IN THE BOX_

• MSI MAG PANO M100R PZ M-ATX ARGB Gaming Chassis - Black x1
